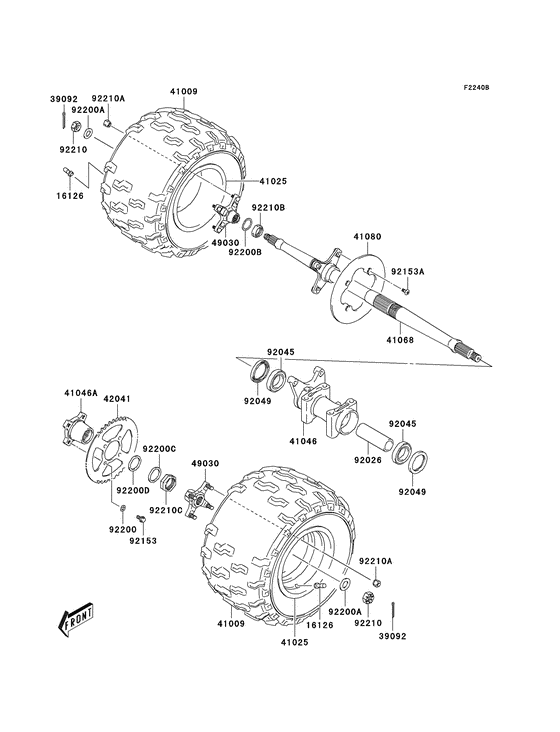

Rear hub (A3) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-S002 VALVE,WHEEL RIM,TR412Valve,wheel rim,tr412; |
16126-S002 |
from US $5.86 |
||
|
39092
|
39092
39092-S010 PIN-HAIR,REAR HUBPin-hair,rear hub; |
39092-S010 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S019 PIN-HAIR,REAR HUBPin-hair,rear hub; |
39092-S019 |
US $2.48 |
||
|
41009
|
41009
41009-S013 TIRE,RRTire,rr; |
41009-S013 |
US $221.81 |
||
|
41025
|
41025
41025-S021 RIM,REAR WHEELRim,rear wheel; |
41025-S021 |
US $356.98 |
||
|
41046
|
41046
41046-S007 HOUSING-BEARING |
41046-S007 |
US $216.33 |
||
|
41046A
|
41046A
41046-S009 HOUSING-BEARING |
41046-S009 |
US $177.91 |
||
|
41068
|
41068
41068-S019 AXLEAxle,rr; |
41068-S019 |
US $616.77 |
||
| replacement | |||||
|
41068
|
41068
41068-S021 AXLEAxle,rr; |
41068-S021 |
US $565.98 |
||
|
41080
|
41080
41080-S006 DISC,REAR BRAKEDisc,rear brake; |
41080-S006 |
US $219.64 |
||
|
42041
|
42041
42041-S011 SPROCKET-HUB |
42041-S011 |
US $73 |
||
|
49030
|
49030
49030-S006-563 HUB,RR,F.GRAYHub,rr,f.gray; |
49030-S006-563 |
US $142.06 |
||
|
92026
|
92026
92026-S106 SPACER,REAR AXLESpacer,rear axle; |
92026-S106 |
US $56.41 |
||
|
92045
|
92045
92045-S049 BEARING-BALL,REAR AXLBearing-ball,rear axle; |
92045-S049 |
US $52.17 |
||
|
92049
|
92049
92049-S052 SEAL-OIL,AXLESeal-oil,axle; |
92049-S052 |
US $22.66 |
||
|
92153
|
92153
92153-S277 BOLT,REAR SPROCKETBolt,rear sprocket; |
92153-S277 |
US $6.46 |
||
|
92153A
|
92153A
92153-S283 BOLT,FRONT BRAKE DISC |
92153-S283 |
from US $2.38 |
||
|
92200
|
92200
92200-S139 WASHER,REAR SPROCKETWasher,rear sprocket; |
92200-S139 |
US $5.90 |
||
|
92200A
|
92200A
92200-S141 WASHER,REAR HUBWasher,rear hub; |
92200-S141 |
US $5.49 |
||
|
92200B
|
92200B
92200-S143 WASHER,REAR AXLEWasher,rear axle; |
92200-S143 |
US $8.18 |
||
|
92200C
|
92200C
92200-S278 WASHER |
92200-S278 |
US $7.22 |
||
|
92200D
|
92200D
92200-S279 WASHER |
92200-S279 |
US $10.39 |
||
|
92210
|
92210
92210-S113 NUT,REAR HUBNut,rear hub; |
92210-S113 |
US $7.91 |
||
|
92210A
|
92210A
92210-S179 NUT |
92210-S179 |
US $5.58 |
||
|
92210B
|
92210B
92210-S180 NUT |
92210-S180 |
US $28.82 |
||
|
92210C
|
92210C
92210-S181
NUT,REAR AXLE
Nut,rear axle; |
92210-S181 |
— | ||
