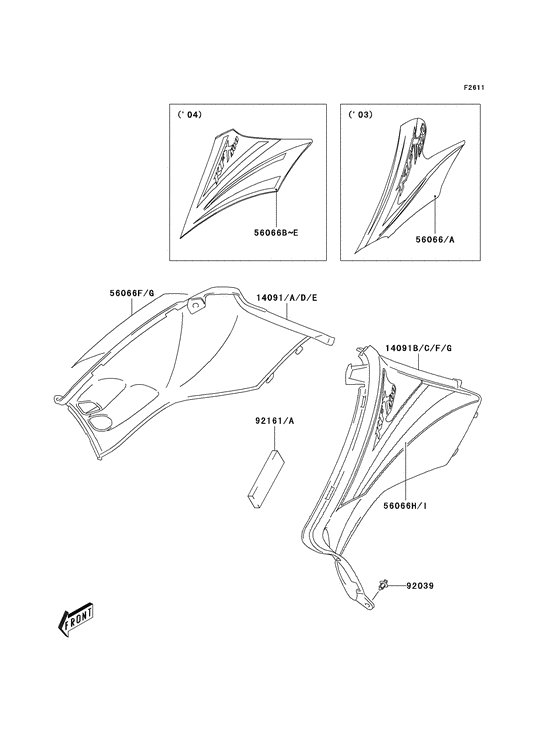

Side covers Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091D
|
14091D
14091-S180-268 COVER,SIDE,RH,B.ORANGCover,side,rh,b.orange; |
14091-S180-268 |
US $43.65 |
||
|
14091E
|
14091E
14091-S180-908
COVER,SIDE,RH,L.GREEN
Cover,side,rh,l.green; |
14091-S180-908 |
— | ||
|
14091F
|
14091F
14091-S181-268 COVER,SIDE,LH,B.ORANGCover,side,lh,b.orange; |
14091-S181-268 |
US $43.56 |
||
|
14091G
|
14091G
14091-S181-908
COVER,SIDE,LH,L.GREEN
Cover,side,lh,l.green; |
14091-S181-908 |
— | ||
|
56066F
|
56066F
56066-S051-910 PATTERN,RH,BLK/GLD/GRPattern,rh,blk/gld/grn/wht; |
56066-S051-910 |
US $85.34 |
||
|
56066G
|
56066G
56066-S051-914 PATTERN,RH,BLK/GLD/WHPattern,rh,blk/gld/wht/org; |
56066-S051-914 |
US $85.34 |
||
|
56066H
|
56066H
56066-S052-910 PATTERN,LH,BLK/GLD/GRPattern,lh,blk/gld/grn/wht; |
56066-S052-910 |
US $94.97 |
||
|
56066I
|
56066I
56066-S052-914 PATTERN,LH,BLK/GLD/WHPattern,lh,blk/gld/wht/org; |
56066-S052-914 |
US $94.97 |
||
|
92039
|
92039
92039-S010 RIVET |
92039-S010 |
US $3.94 |
||
|
92161A
|
92161A
92161-S211 DAMPER,SIDE COVERDamper,side cover; |
92161-S211 |
US $4.19 |
