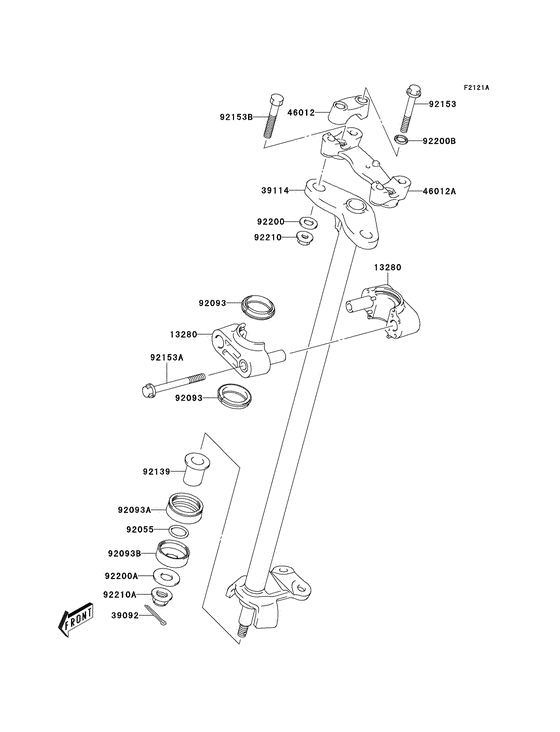

Steering shaft (A3) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13280
|
13280
13280-S026 HOLDER |
13280-S026 |
US $25.06 |
||
|
39092
|
39092
39092-S005 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S005 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S014 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S014 |
US $2.48 |
||
|
39114
|
39114
39114-S005 SHAFT-COMP-STRG |
39114-S005 |
US $244.49 |
||
| replacement | |||||
|
39114
|
39114
39114-S006 SHAFT-COMP-STRG |
39114-S006 |
US $300.15 |
||
|
46012
|
46012
46012-S005-504 HOLDER-HANDLE,BLACKHolder-handle,black; |
46012-S005-504 |
US $28.66 |
||
|
46012A
|
46012A
46012-S011-504 HOLDER-HANDLE,BLACKHolder-handle,black; |
46012-S011-504 |
US $47.29 |
||
| replacement | |||||
|
46012A
|
46012A
46012-S012-504 HOLDER-HANDLE,BLACKHolder-handle,black; |
46012-S012-504 |
US $47.29 |
||
|
92055
|
92055
92055-S006 RING-O,ID:6.8Ring-o,d=3.1; |
92055-S006 |
from US $2.38 |
||
|
92093
|
92093
92093-S038 SEAL |
92093-S038 |
US $10.18 |
||
|
92093A
|
92093A
92093-S052 SEAL |
92093-S052 |
US $7.94 |
||
| replacement | |||||
|
92093A
|
92093A
92093-S057 Seal |
92093-S057 |
US $5.85 |
||
|
92093B
|
92093B
92093-S053 SEAL |
92093-S053 |
US $9.27 |
||
| replacement | |||||
|
92093B
|
92093B
92093-S058 Seal |
92093-S058 |
US $9.27 |
||
|
92139
|
92139
92139-S030 BUSHING,STEERING SHAFBushing,steering shaft; |
92139-S030 |
US $39.34 |
||
|
92153
|
92153
92153-S070 BOLT |
92153-S070 |
from US $1.74 |
||
| replacement | |||||
|
92153
|
92153
92153-S513 BOLT |
92153-S513 |
US $3.37 |
||
|
92153A
|
92153A
92153-S250 BOLT,STEERING SHAFT HBolt,steering shaft holder; |
92153-S250 |
US $2.50 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S533 BOLT,STEERING SHAFT HBolt,steering shaft holder; |
92153-S533 |
US $2.50 |
||
|
92153B
|
92153B
92153-S324 BOLT,10X35Bolt,10x35; |
92153-S324 |
US $2 |
||
| replacement | |||||
|
92153B
|
92153B
92153-S577 BOLT,10X35Bolt,10x35; |
92153-S577 |
US $1.55 |
||
|
92200
|
92200
92200-S095 WASHER,STEERING SHAFTWasher,steering shaft,lwr; |
92200-S095 |
US $2.23 |
||
|
92200A
|
92200A
92200-S137 WASHER,STEERING SHAFTWasher,steering shaft; |
92200-S137 |
US $3.37 |
||
|
92200B
|
92200B
92200-S233 WASHER |
92200-S233 |
US $2.68 |
||
|
92210
|
92210
92210-S030 NUT |
92210-S030 |
from US $2.38 |
||
| replacement | |||||
|
92210
|
92210
92210-S207 NUT |
92210-S207 |
from US $2.17 |
||
|
92210A
|
92210A
92210-S032 NUT |
92210-S032 |
from US $2.38 |
||
| replacement | |||||
|
92210A
|
92210A
92210-S208 NUT |
92210-S208 |
from US $2.17 |
||
