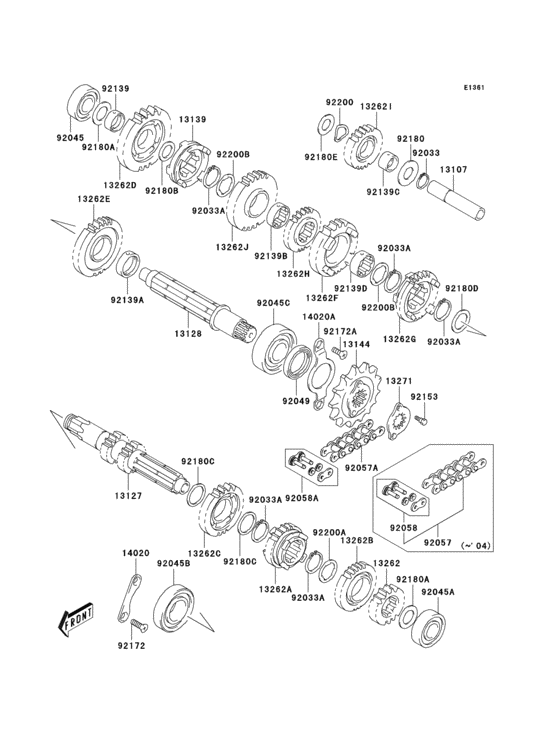

Transmission(1/2) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- Canada
- Colour
- Colored Plastic Blazing Orange (268)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13107
|
13107
13107-S005 SHAFT,REVERSE IDLE |
13107-S005 |
US $25.74 |
||
|
13127
|
13127
13127-S006 SHAFT-TRANSMISSION IN |
13127-S006 |
US $202.64 |
||
|
13128
|
13128
13128-S008 SHAFT-TRANSMISSION OU |
13128-S008 |
US $152.30 |
||
|
13139
|
13139
13139-S002 SHIFTER,REVERSE |
13139-S002 |
US $53.09 |
||
|
13144
|
13144
13144-S006 SPROCKET-OUTPUT,14T |
13144-S006 |
US $33.80 |
||
|
13262
|
13262
13262-S011 GEAR,INPUT,2ND,18T |
13262-S011 |
US $81.36 |
||
|
13262A
|
13262A
13262-S012 GEAR,INPUT,3RD,21T |
13262-S012 |
US $115.87 |
||
|
13262B
|
13262B
13262-S013 GEAR,INPUT,4TH,23T |
13262-S013 |
US $97.92 |
||
|
13262C
|
13262C
13262-S014 GEAR,INPUT,5TH,26T |
13262-S014 |
US $97.92 |
||
|
13262D
|
13262D
13262-S015 GEAR,OUTPUT,LOW,33T |
13262-S015 |
US $102.14 |
||
|
13262E
|
13262E
13262-S016 GEAR,OUTPUT,2ND,30T |
13262-S016 |
US $102.14 |
||
|
13262F
|
13262F
13262-S017 GEAR,OUTPUT,3RD,26T |
13262-S017 |
US $108.19 |
||
|
13262G
|
13262G
13262-S018 GEAR,OUTPUT,4TH,23T |
13262-S018 |
US $104.85 |
||
| replacement | |||||
|
13262G
|
13262G
13262-S045 GEAR,OUTPUT,4TH,23T |
13262-S045 |
US $145.81 |
||
|
13262H
|
13262H
13262-S019 GEAR,OUTPUT,5TH,22T |
13262-S019 |
US $96.82 |
||
|
13262I
|
13262I
13262-S020 GEAR,REVERSE,24T |
13262-S020 |
US $66.28 |
||
|
13262J
|
13262J
13262-S033 GEAR,REVERSE,28T |
13262-S033 |
US $84.11 |
||
|
13271
|
13271
13271-S047 PLATE |
13271-S047 |
US $7.51 |
||
|
14020
|
14020
14020-S007 RETAINER |
14020-S007 |
US $5.20 |
||
|
14020A
|
14020A
14020-S010 RETAINER |
14020-S010 |
US $9.88 |
||
|
92033
|
92033
92033-S034 Ring-snap |
92033-S034 |
US $1.35 |
||
| replacement | |||||
|
92033
|
92033
92033-S088 RING-SNAP |
92033-S088 |
from US $1.09 |
||
|
92033A
|
92033A
92033-S039 RING-SNAP |
92033-S039 |
US $4.47 |
||
|
92045
|
92045
92045-S035 BEARING-BALL,CRANKSHA |
92045-S035 |
US $19.38 |
||
|
92045A
|
92045A
92045-S051 BEARING-BALL |
92045-S051 |
US $41.06 |
||
|
92045B
|
92045B
92045-S052 BEARING-BALL |
92045-S052 |
US $45.41 |
||
|
92045C
|
92045C
92045-S053 BEARING-BALL |
92045-S053 |
US $67 |
||
|
92049
|
92049
92049-S051 SEAL-OIL,DRIVE SHAFT |
92049-S051 |
US $49.25 |
||
|
92057A
|
92057A
92057-S018 CHAIN |
92057-S018 |
US $155.77 |
||
|
92058A
|
92058A
92058-S006 JOINT-CHAIN |
92058-S006 |
US $14.06 |
||
|
92139
|
92139
92139-S022 BUSHING |
92139-S022 |
US $14.20 |
||
|
92139A
|
92139A
92139-S023 BUSHING,2ND GEAR |
92139-S023 |
US $12.58 |
||
|
92139B
|
92139B
92139-S025 BUSHING |
92139-S025 |
US $14.09 |
||
|
92139C
|
92139C
92139-S026 BUSHING,REVERSE IDLE |
92139-S026 |
US $14.81 |
||
|
92139D
|
92139D
92139-S027 BUSHING,3RD GEAR |
92139-S027 |
US $17.28 |
||
|
92153
|
92153
92153-S284 BOLT,ENGINE SPROCKET |
92153-S284 |
US $9.18 |
||
|
92172
|
92172
92172-S112 SCREW |
92172-S112 |
US $3.37 |
||
|
92172A
|
92172A
92172-S171 SCREW,RETAINER |
92172-S171 |
US $3.18 |
||
|
92180
|
92180
92180-S013 SHIM,REVERSE IDLE GEA |
92180-S013 |
US $2.52 |
||
|
92180A
|
92180A
92180-S014 SHIM,2ND GEAR |
92180-S014 |
US $2.52 |
||
|
92180B
|
92180B
92180-S015 SHIM,1ST GEAR |
92180-S015 |
US $3.88 |
||
|
92180C
|
92180C
92180-S016 SHIM,5TH GEAR |
92180-S016 |
US $2.48 |
||
|
92180D
|
92180D
92180-S017 SHIM,2ND GEAR |
92180-S017 |
US $2.68 |
||
|
92180E
|
92180E
92180-S046 SHIM,REVERSE IDLE GEA |
92180-S046 |
US $2.68 |
||
|
92200
|
92200
92200-S142 WASHER,REVERSE GEAR |
92200-S142 |
US $4.46 |
||
|
92200A
|
92200A
92200-S145 WASHER,4TH GEAR |
92200-S145 |
US $2.59 |
||
|
92200B
|
92200B
92200-S146 WASHER,3RD GEAR |
92200-S146 |
US $38.94 |
||
