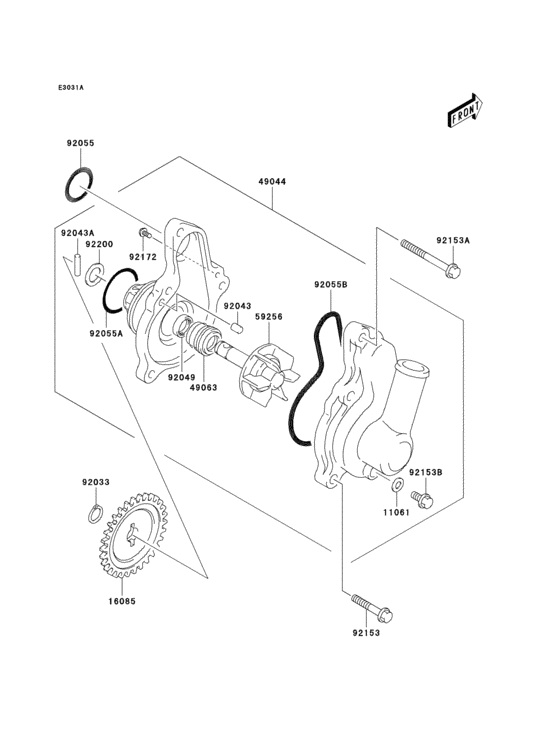

Water pump(a3) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- Europe
- Colour
- Lime Green No.2 (908)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S111 GASKET |
11061-S111 |
US $5.13 |
||
|
16085
|
16085
16085-S005 GEAR,WATER PUMP |
16085-S005 |
US $44.91 |
||
|
49044
|
49044
49044-S007 PUMP-WATER |
49044-S007 |
US $201.19 |
||
| replacement | |||||
|
49044
|
49044
49044-S010 PUMP-WATER |
49044-S010 |
from US $157.08 |
||
|
49063
|
49063
49063-S001 SEAL-MECHANICAL,WATER |
49063-S001 |
from US $29.92 |
||
| replacement | |||||
|
49063
|
49063
49063-S005 Seal-Mechanical,water |
49063-S005 |
US $39 |
||
|
59256
|
59256
59256-S005 IMPELLER |
59256-S005 |
US $56.46 |
||
|
92033
|
92033
92033-S001 Ring-snap |
92033-S001 |
from US $1.11 |
||
| replacement | |||||
|
92033
|
92033
92033-S086 RING-SNAP |
92033-S086 |
US $2.92 |
||
|
92043
|
92043
92043-S071 PIN |
92043-S071 |
US $2.50 |
||
|
92043A
|
92043A
92043-S072 PIN |
92043-S072 |
US $2.50 |
||
|
92049
|
92049
92049-S071 SEAL-OIL |
92049-S071 |
US $8.14 |
||
|
92055
|
92055
92055-S007 RING-O,D:2.4 ID:21.8 |
92055-S007 |
from US $2.38 |
||
|
92055A
|
92055A
92055-S015 RING-O |
92055-S015 |
from US $12.51 |
||
|
92055B
|
92055B
92055-S119 RING-O |
92055-S119 |
US $10.17 |
||
|
92153
|
92153
92153-S261 BOLT,6X30 |
92153-S261 |
US $2.38 |
||
|
92153A
|
92153A
92153-S262 BOLT,CLUTCH COVER |
92153-S262 |
US $2.38 |
||
|
92153B
|
92153B
92153-S468 BOLT |
92153-S468 |
US $5.13 |
||
|
92172
|
92172
92172-S283 SCREW |
92172-S283 |
US $2.50 |
||
|
92200
|
92200
92200-S275 WASHER |
92200-S275 |
US $3.80 |
||
