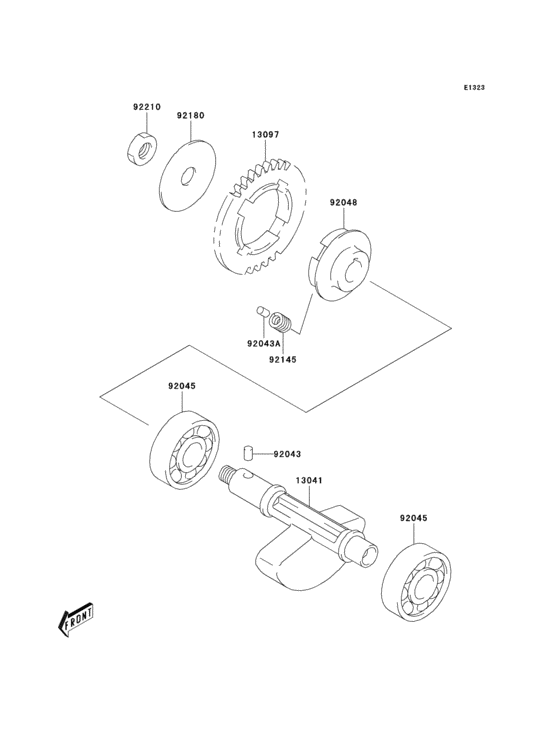

Balancer Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400A6F
- Engine Capacity
- 398
- Year
- 2006
- Sales region
- Europe
- Colour
- Lime Green No.2 (908)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13041
|
13041
13041-S002 BALANCER,CRANK |
13041-S002 |
US $98.86 |
||
|
13097
|
13097
13097-S010 GEAR-PRIMARY SPUR |
13097-S010 |
US $97.29 |
||
|
92043
|
92043
92043-S008 PIN,5X8 |
92043-S008 |
from US $1.43 |
||
|
92043A
|
92043A
92043-S037 PIN |
92043-S037 |
US $2.68 |
||
|
92045
|
92045
92045-S050 BEARING-BALL,BALANCER |
92045-S050 |
US $30.19 |
||
|
92048
|
92048
92048-S012 RACE,OUTPUT GEAR |
92048-S012 |
US $53.93 |
||
|
92145
|
92145
92145-S091 SPRING |
92145-S091 |
US $2.48 |
||
|
92180
|
92180
92180-S009 SHIM,CRANK BALANCER |
92180-S009 |
US $4.27 |
||
|
92210
|
92210
92210-S101 NUT,CRANK BALANCER |
92210-S101 |
US $2.57 |
