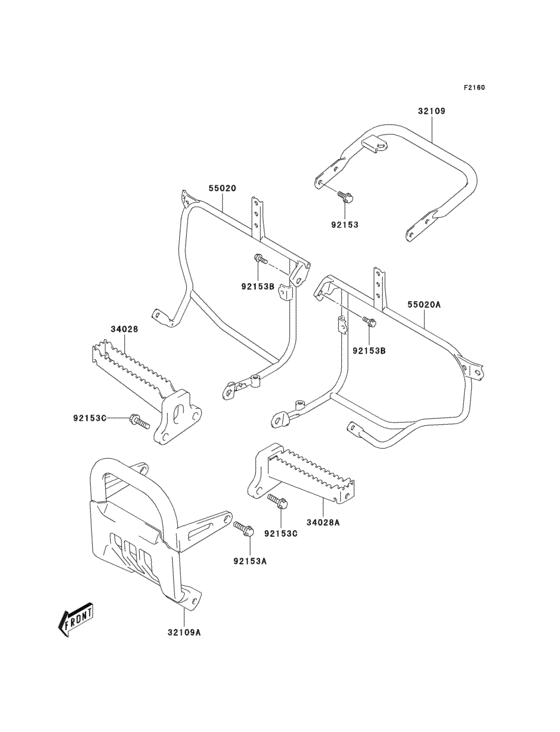

Footrests Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400A6F
- Engine Capacity
- 398
- Year
- 2006
- Sales region
- Europe
- Colour
- Lime Green No.2 (908)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32109
|
32109
32109-S010 GRIP-FRAME |
32109-S010 |
US $113.31 |
||
|
32109A
|
32109A
32109-S011 GRIP-FRAME,FR |
32109-S011 |
US $98.19 |
||
|
34028
|
34028
34028-S013 STEP,RH |
34028-S013 |
US $56.61 |
||
|
34028A
|
34028A
34028-S014 STEP,LH |
34028-S014 |
US $56.61 |
||
|
55020
|
55020
55020-S042 GUARD,RH |
55020-S042 |
US $116.33 |
||
|
55020A
|
55020A
55020-S043 GUARD,LH |
55020-S043 |
US $116.33 |
||
|
92153
|
92153
92153-S108 BOLT |
92153-S108 |
from US $1.43 |
||
| replacement | |||||
|
92153
|
92153
92153-S489 BOLT |
92153-S489 |
from US $1.09 |
||
|
92153A
|
92153A
92153-S220 BOLT |
92153-S220 |
US $1.55 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S490 BOLT |
92153-S490 |
US $3.03 |
||
|
92153B
|
92153B
92153-S266 BOLT,SEAT |
92153-S266 |
US $2.23 |
||
|
92153C
|
92153C
92153-S464 BOLT |
92153-S464 |
US $5.58 |
||
