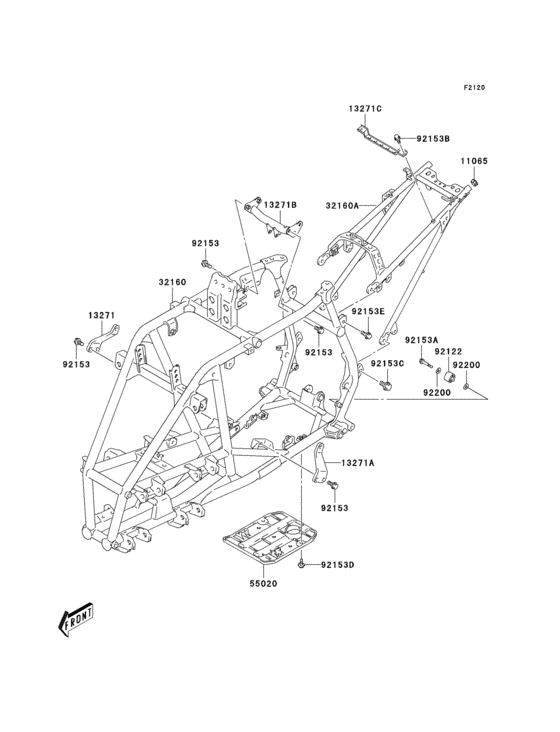

Frame Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400A6F
- Engine Capacity
- 398
- Year
- 2006
- Sales region
- Europe
- Colour
- Lime Green No.2 (908)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-S065 CAP |
11065-S065 |
US $6.30 |
||
|
13271
|
13271
13271-S050 PLATE |
13271-S050 |
US $35.91 |
||
|
13271A
|
13271A
13271-S051 PLATE |
13271-S051 |
US $35.91 |
||
|
13271B
|
13271B
13271-S083 PLATE,MOUNT ENGINE,UP |
13271-S083 |
US $55.55 |
||
| replacement | |||||
|
13271B
|
13271B
13272-S003 PLATE,MOUNT ENGINE,UP |
13272-S003 |
US $55.55 |
||
|
13271C
|
13271C
13271-S084 PLATE,BATTERY |
13271-S084 |
US $16.32 |
||
|
32160
|
32160
32160-S027-909 FRAME-COMP,FR,P.SILVE |
32160-S027-909 |
US $1,618.69 |
||
|
32160A
|
32160A
32160-S028-514 FRAME-COMP,RR,S.SILVE |
32160-S028-514 |
US $430.29 |
||
|
55020
|
55020
55020-S015 GUARD,ENGINE |
55020-S015 |
US $34.43 |
||
|
92122
|
92122
92122-S008 ROLLER |
92122-S008 |
US $67.61 |
||
|
92153
|
92153
92153-S220 BOLT |
92153-S220 |
US $1.55 |
||
| replacement | |||||
|
92153
|
92153
92153-S490 BOLT |
92153-S490 |
US $3.03 |
||
|
92153A
|
92153A
92153-S264 BOLT,CHAIN ROLLER |
92153-S264 |
US $3.35 |
||
|
92153B
|
92153B
92153-S383 BOLT,6X16 |
92153-S383 |
from US $1.74 |
||
|
92153C
|
92153C
92153-S397 BOLT |
92153-S397 |
US $5.47 |
||
|
92153D
|
92153D
92153-S439 BOLT |
92153-S439 |
US $6.58 |
||
|
92153E
|
92153E
92153-S464 BOLT |
92153-S464 |
US $5.58 |
||
|
92200
|
92200
92200-S111 WASHER,OIL PUMP DRIVE |
92200-S111 |
US $1.67 |
||
