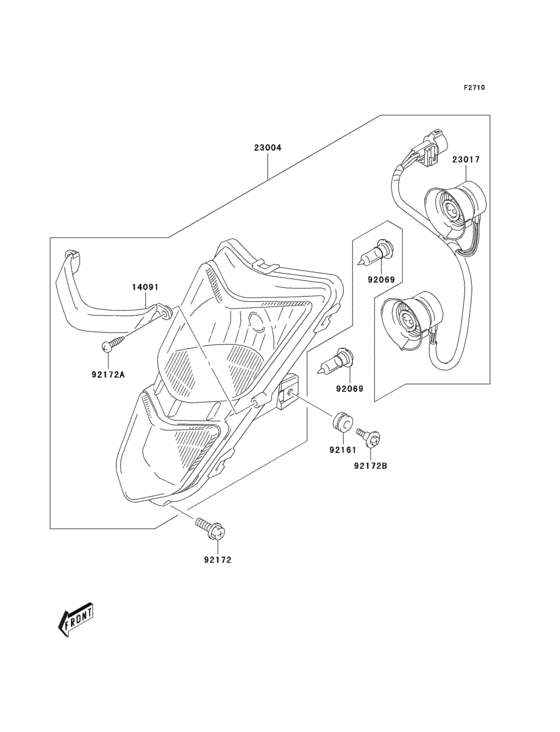

Headlight(s) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400A6F
- Engine Capacity
- 398
- Year
- 2006
- Sales region
- Europe
- Colour
- Lime Green No.2 (908)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091
|
14091
14091-S083-503 COVER,BLACK |
14091-S083-503 |
US $28.89 |
||
|
23004
|
23004
23004-S002-503 LAMP-HEAD,BLACK |
23004-S002-503 |
US $509.03 |
||
|
23017
|
23017
23017-S004 SOCKET |
23017-S004 |
US $61.66 |
||
|
92069
|
92069
92069-S014 BULB,14V30/30W |
92069-S014 |
US $37.91 |
||
|
92161
|
92161
92161-S005 DAMPER |
92161-S005 |
from US $2.38 |
||
|
92172
|
92172
92172-S021 Screw |
92172-S021 |
from US $0.95 |
||
| replacement | |||||
|
92172
|
92172
92172-S375 SCREW,6X16 |
92172-S375 |
from US $0.94 |
||
|
92172A
|
92172A
92172-S169 SCREW |
92172-S169 |
US $1.19 |
||
| replacement | |||||
|
92172A
|
92172A
92172-S372 SCREW |
92172-S372 |
US $1.19 |
||
|
92172B
|
92172B
92172-S174 SCREW,HEADLAMP |
92172-S174 |
US $2.93 |
||
