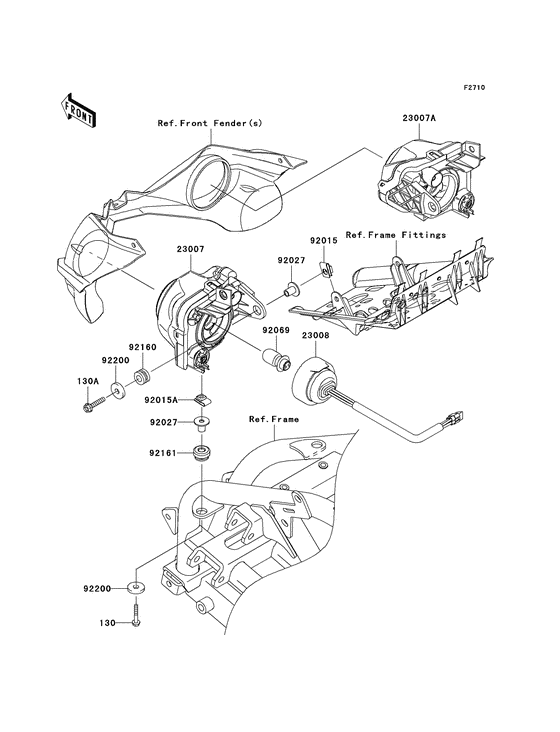

Headlight Diagram Kawasaki KSF450 KFX 450R
- Model code
- KSF450B8F
- Engine Capacity
- 449
- Year
- 2008
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0530 BOLT-FLANGEDBolt-flanged,5x30; |
130BA0530 |
from US $0.94 |
||
|
130A
|
130A
130BA0630 BOLT-FLANGED,6X30Bolt-flanged,6x30; |
130BA0630 |
from US $0.95 |
||
|
23007
|
23007
23007-0094 LENS-COMP,HEAD LAMP,LLens-comp,head lamp,lh; |
23007-0094 |
from US $79.34 |
||
|
23007A
|
23007A
23007-0095 LENS-COMP,HEAD LAMP,RLens-comp,head lamp,rh; |
23007-0095 |
from US $77.92 |
||
|
23008
|
23008
23008-0079 SOCKET-ASSY,HEAD LAMPSocket-assy,head lamp; |
23008-0079 |
from US $16.79 |
||
|
92015
|
92015
92015-1602 NUT,6MMNut,6mm; |
92015-1602 |
from US $3.96 |
||
|
92015A
|
92015A
92015-1710 NUTNut,5mm; |
92015-1710 |
from US $3.48 |
||
|
92027
|
92027
92027-1847 COLLAR,6=16.1Collar,l=16.1; |
92027-1847 |
from US $3.64 |
||
|
92069
|
92069
92069-1080 BULBBulb,12v 30/30w; |
92069-1080 |
from US $30.07 |
||
|
92160
|
92160
92160-1167 DAMPER |
92160-1167 |
from US $3.01 |
||
|
92161
|
92161
92161-0483 DAMPER |
92161-0483 |
from US $2.17 |
||
|
92200
|
92200
92200-0359 WASHER,6.5X20X3.2Washer,6.5x20x3.2; |
92200-0359 |
from US $0.94 |
