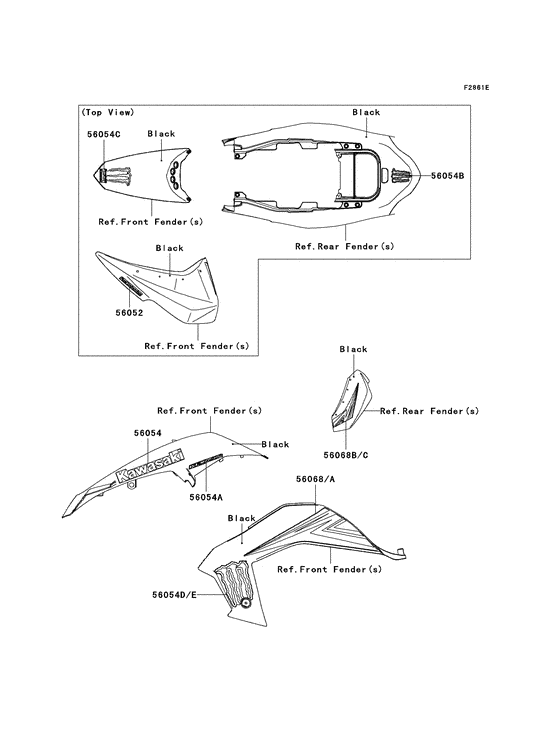

Decals (Black; b9fb) Diagram Kawasaki KSF450 KFX 450R
- Model code
- KSF450B9FB
- Engine Capacity
- 449
- Year
- 2009
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56052
|
56052
56052-1990 MARK,FUEL INJECTIONMark,fuel injection; |
56052-1990 |
US $4.77 |
||
|
56054
|
56054
56054-0352 MARKMark,fr fender,kawasaki; |
56054-0352 |
US $16.54 |
||
|
56054A
|
56054A
56054-0353 MARKMark,fr fender,kfx450r; |
56054-0353 |
US $6.12 |
||
|
56054B
|
56054B
56054-0356
MARK
Mark,rr fender,lh; |
56054-0356 |
— | ||
|
56054C
|
56054C
56054-0357
MARK
Mark,top cover; |
56054-0357 |
— | ||
|
56054D
|
56054D
56054-0420
MARK
Mark,side cover,lh; |
56054-0420 |
— | ||
|
56054E
|
56054E
56054-0421
MARK
Mark,side cover,rh; |
56054-0421 |
— | ||
|
56068
|
56068
56068-1601
Pattern
Pattern,side cover,lh; |
56068-1601 |
— | ||
|
56068A
|
56068A
56068-1602
Pattern
Pattern,side cover,rh; |
56068-1602 |
— | ||
|
56068B
|
56068B
56068-1603
Pattern
Pattern,rr fender,outer,lh; |
56068-1603 |
— | ||
|
56068C
|
56068C
56068-1604
Pattern
Pattern,rr fender,outer,rh; |
56068-1604 |
— |
