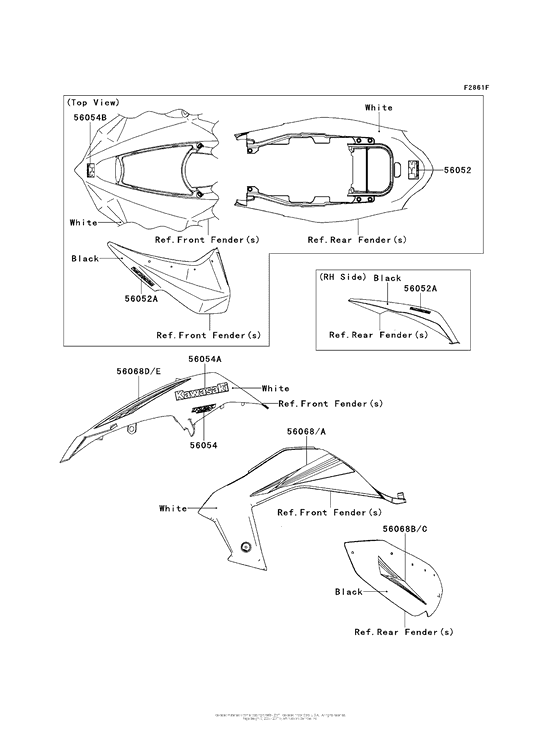

Decals (White)(Baf) Diagram Kawasaki KSF450 KFX 450R
- Model code
- KSF450BAF
- Engine Capacity
- 449
- Year
- 2010
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56052
|
56052
56052-1989 MARK,REAR FENDER,KAWASAKI |
56052-1989 |
US $4.96 |
||
|
56052A
|
56052A
56052-1990 MARK,FUEL INJECTION |
56052-1990 |
US $4.77 |
||
|
56054
|
56054
56054-0460 MARK,SIDE COVER,KFX45 |
56054-0460 |
US $3.33 |
||
|
56054A
|
56054A
56054-0461 MARK,FR FENDER,KAWASA |
56054-0461 |
US $16.81 |
||
|
56054B
|
56054B
56054-0462 MARK,FR FENDER,"K" |
56054-0462 |
US $2.52 |
||
|
56068
|
56068
56068-1873 PATTERN,SIDE COVER,LH |
56068-1873 |
US $26.89 |
||
|
56068A
|
56068A
56068-1874 PATTERN,SIDE COVER,RH |
56068-1874 |
US $26.89 |
||
|
56068B
|
56068B
56068-1875 PATTERN,RR FENDER,OUT |
56068-1875 |
US $26.89 |
||
|
56068C
|
56068C
56068-1876 PATTERN,RR FENDER,OUT |
56068-1876 |
US $26.89 |
||
|
56068D
|
56068D
56068-1877 PATTERN,FR FENDER,LH |
56068-1877 |
US $26.89 |
||
|
56068E
|
56068E
56068-1878 PATTERN,FR FENDER,RH |
56068-1878 |
US $26.10 |
