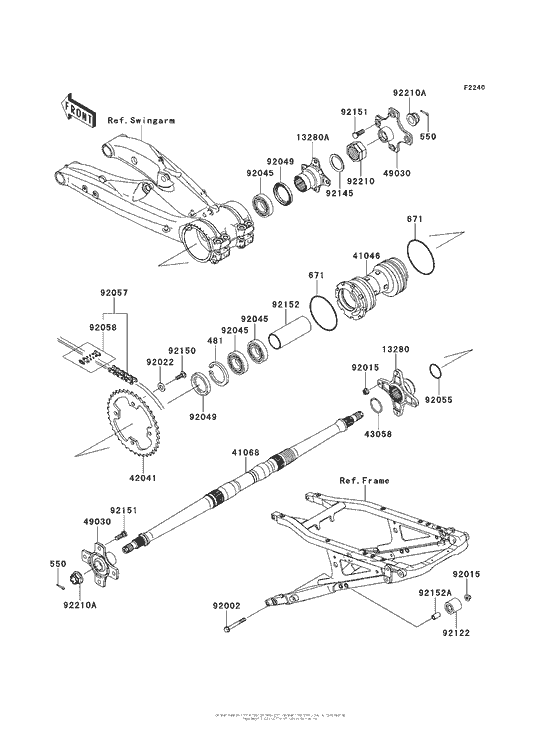

Rear Hub Diagram Kawasaki KSF450 KFX 450R
- Model code
- KSF450BAF
- Engine Capacity
- 449
- Year
- 2010
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
481
|
481
481J6500 CIRCLIP-TYPE-C,65MM |
481J6500 |
from US $2.79 |
||
|
550
|
550
550AA4025 PIN-COTTER |
550AA4025 |
from US $0.82 |
||
|
671
|
671
671B2585 0 RING |
671B2585 |
from US $4.82 |
||
|
13280
|
13280
13280-0254 HOLDER,SPROCKET |
13280-0254 |
from US $63.65 |
||
|
13280A
|
13280A
13280-0255 HOLDER,REAR DISC |
13280-0255 |
from US $63.65 |
||
|
41046
|
41046
41046-0015 HOUSING-BEARING |
41046-0015 |
US $294.56 |
||
|
41068
|
41068
41068-0052 AXLE,RR |
41068-0052 |
US $519.54 |
||
|
42041
|
42041
42041-0044 SPROCKET-HUB,38T |
42041-0044 |
from US $93.87 |
||
|
43058
|
43058
43058-0016 RING |
43058-0016 |
from US $5.29 |
||
|
49030
|
49030
49030-0029 HUB,RR |
49030-0029 |
from US $73.25 |
||
|
92002
|
92002
92002-1349 BOLT,FLANGED,8X70 |
92002-1349 |
from US $3.17 |
||
|
92015
|
92015
92015-1432 NUT,8MM |
92015-1432 |
from US $3.80 |
||
|
92022
|
92022
92022-239 WASHER,PLAIN |
92022-239 |
from US $2.53 |
||
|
92045
|
92045
92045-0115 BEARING-BALL,6908-82R |
92045-0115 |
US $48.74 |
||
| replacement | |||||
|
92045
|
92045
92045-0069 BEARING-BALL,6908-82R |
92045-0069 |
from US $44.32 |
||
|
92049
|
92049
92049-1573 SEAL-OIL,TCY 48X65X8 |
92049-1573 |
from US $13.67 |
||
|
92055
|
92055
92055-520 O RING |
92055-520 |
from US $3.17 |
||
|
92057
|
92057
92057-0119 CHAIN,DRIVE,EK520SR-O |
92057-0119 |
from US $94.71 |
||
|
92058
|
92058
92058-1060 JOINT-CHAIN |
92058-1060 |
from US $7.13 |
||
|
92122
|
92122
92122-1216 ROLLER,CHAIN GUIDE |
92122-1216 |
from US $7.44 |
||
|
92145
|
92145
92145-0417 SPRING |
92145-0417 |
from US $3.57 |
||
|
92150
|
92150
92150-1858 BOLT,DISC PLATE,8X25 |
92150-1858 |
from US $5.07 |
||
|
92151
|
92151
92151-1392 BOLT,10X29.5 |
92151-1392 |
from US $2.65 |
||
|
92152
|
92152
92152-0405 COLLAR,40X45.6X117.5 |
92152-0405 |
from US $27.06 |
||
|
92152A
|
92152A
92152-1340 COLLAR,8.5X12.5X20.5 |
92152-1340 |
from US $4.75 |
||
|
92210
|
92210
92210-0298 NUT,LOCK,38MM |
92210-0298 |
from US $32.34 |
||
|
92210A
|
92210A
92210-0299 NUT,CASTLE,20MM |
92210-0299 |
from US $9.01 |
||
