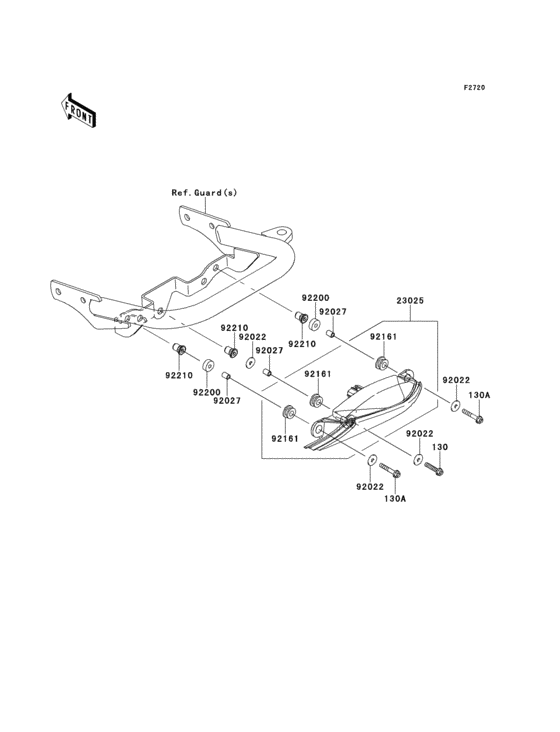

Taillight(s) Diagram Kawasaki KSF450 KFX 450R
- Model code
- KSF450BBF
- Engine Capacity
- 449
- Year
- 2011
- Sales region
- Canada
- Colour
- Lime Green (777)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0525 BOLT-FLANGED,5X25 |
130BA0525 |
from US $0.95 |
||
|
130A
|
130A
130BA0530 BOLT-FLANGED |
130BA0530 |
from US $0.94 |
||
|
23025
|
23025
23025-0046 LAMP-TAIL |
23025-0046 |
from US $112.91 |
||
|
92022
|
92022
92022-3041 WASHER,5X16X1.5 |
92022-3041 |
from US $3.01 |
||
|
92027
|
92027
92027-1313 COLLAR,4.5X6.5X9.3 |
92027-1313 |
from US $5.13 |
||
|
92161
|
92161
92161-1188 DAMPER |
92161-1188 |
from US $1.58 |
||
|
92200
|
92200
92200-0381 WASHER,5.1X16X6 |
92200-0381 |
from US $2.79 |
||
|
92210
|
92210
92210-0370 NUT,WELL,5MM |
92210-0370 |
from US $2.49 |
