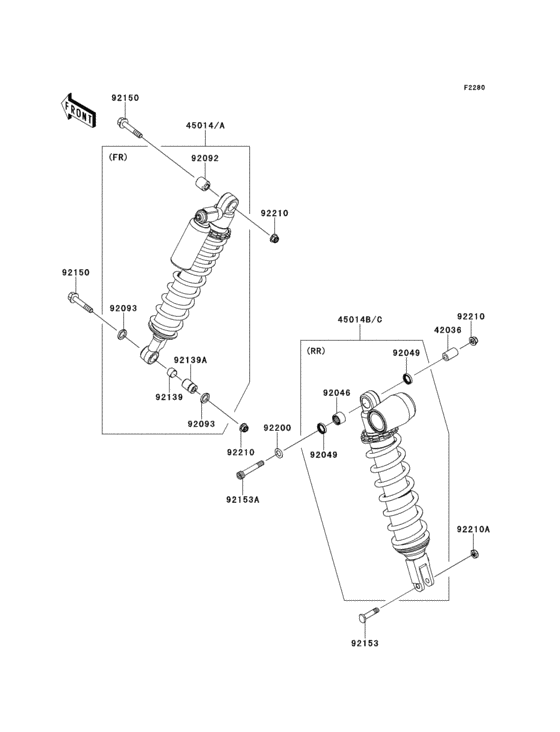

Shock absorber(s) Diagram Kawasaki KSF450 KFX 450R
- Model code
- KSF450BCS
- Engine Capacity
- 449
- Year
- 2012
- Sales region
- Europe
- Frame
- JKASFGB1 CB519301 - CB520100
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42036
|
42036
42036-1258 SLEEVE,10.1X18X30 |
42036-1258 |
from US $8.87 |
||
|
45014
|
45014
45014-0184-EH SHOCK ABSORBER,FR,P.WH |
45014-0184-EH |
US $1,108.21 |
||
|
45014B
|
45014B
45014-0185-EH SHOCK ABSORBER,RR,P.WH |
45014-0185-EH |
US $1,334.52 |
||
|
92046
|
92046
92046-1272 BEARING-NEEDLE,SFYZM1 |
92046-1272 |
from US $15.68 |
||
|
92049
|
92049
92049-1225 SEAL-OIL,MHA18244 |
92049-1225 |
from US $7.13 |
||
|
92092
|
92092
92092-1058 BUSHING-RUBBER |
92092-1058 |
from US $20.43 |
||
|
92093
|
92093
92093-0033 SEAL |
92093-0033 |
from US $3.11 |
||
|
92139
|
92139
92139-0084 BUSHING |
92139-0084 |
from US $11.98 |
||
|
92139A
|
92139A
92139-0213 BUSHING |
92139-0213 |
from US $9.01 |
||
|
92150
|
92150
92150-1719 BOLT,FLANGED,10X51 |
92150-1719 |
from US $6.81 |
||
|
92153
|
92153
92153-0937 BOLT,10X45 |
92153-0937 |
from US $3.96 |
||
|
92153A
|
92153A
92153-1943 BOLT,SOCKET,10X63 |
92153-1943 |
from US $5.54 |
||
|
92200
|
92200
92200-0330 WASHER,10.6X18X1.2 |
92200-0330 |
from US $1.24 |
||
|
92210
|
92210
92210-1080 NUT |
92210-1080 |
from US $6.49 |
||
|
92210A
|
92210A
92210-1184 NUT |
92210-1184 |
from US $4.09 |
