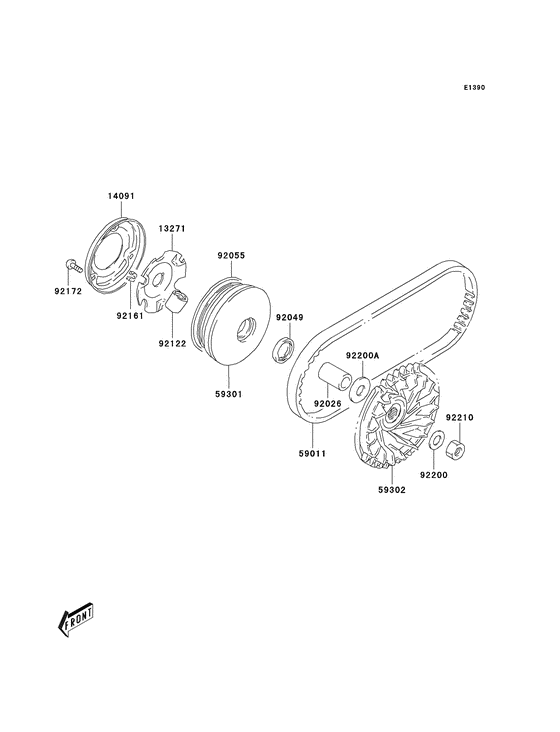

Belt converter Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A1
- Engine Capacity
- 79
- Year
- 2003
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13271
|
13271
13271-S040 PLATE,MOVABLE DRIVEPlate,movable drive; |
13271-S040 |
US $12.44 |
||
|
14091
|
14091
14091-S076 COVER,MOVABLE DRIVECover,movable drive; |
14091-S076 |
US $6.43 |
||
|
59011
|
59011
59011-S003 BELT,DRIVEBelt,drive; |
59011-S003 |
US $49.42 |
||
|
59301
|
59301
59301-S003 SHEAVE-MOVABLE |
59301-S003 |
US $76.62 |
||
|
59302
|
59302
59302-S007 SHEAVE-COMP,FIXED DRISheave-comp,fixed drive; |
59302-S007 |
US $157.91 |
||
|
92026
|
92026
92026-S070 SPACER,MOVABLE DRIVESpacer,movable drive; |
92026-S070 |
US $22.54 |
||
|
92049
|
92049
92049-S035 SEAL-OIL,MOVABLE DRIVSeal-oil,movable drive; |
92049-S035 |
US $7.87 |
||
|
92055
|
92055
92055-S045 RING-O,MOVABLE DRIVERing-o,movable drive; |
92055-S045 |
US $9.74 |
||
|
92122
|
92122
92122-S007 ROLLER,MOVABLE DRIVERoller,movable drive; |
92122-S007 |
US $6.26 |
||
|
92161
|
92161
92161-S074 DAMPER |
92161-S074 |
US $6.99 |
||
|
92172
|
92172
92172-S144 SCREWScrew,movable drive; |
92172-S144 |
from US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S326 SCREWScrew,movable drive; |
92172-S326 |
from US $0.94 |
||
|
92200
|
92200
92200-S087 WASHER,CLUTCHWasher,clutch; |
92200-S087 |
US $3.18 |
||
|
92200A
|
92200A
92200-S113 WASHER,MOVABLE DRIVEWasher,movable drive face; |
92200-S113 |
US $4.34 |
||
|
92210
|
92210
92210-S082 NUT,FIXED DRIVENut,fixed drive; |
92210-S082 |
US $5.36 |
||
