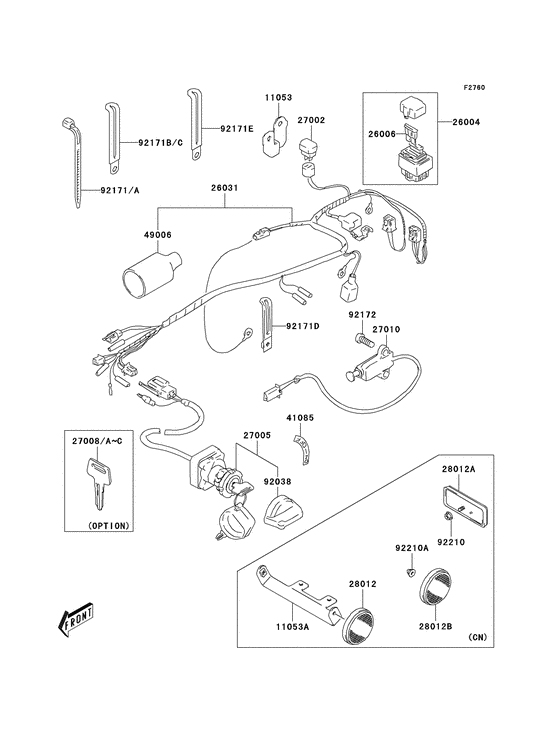

Chassis electrical equipment Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A1
- Engine Capacity
- 79
- Year
- 2003
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-S005 BRACKET |
11053-S005 |
US $10.46 |
||
|
11053A
|
11053A
11053-S009
Bracket
|
11053-S009 |
— | ||
|
26004
|
26004
26004-S001 FUSE-ASSY |
26004-S001 |
US $22.54 |
||
|
26006
|
26006
26006-S005 FUSE,5AFuse,5a; |
26006-S005 |
US $1.33 |
||
|
26031
|
26031
26031-S001 HARNESS |
26031-S001 |
US $158.64 |
||
|
27002
|
27002
27002-S004 RELAY-ASSY |
27002-S004 |
US $38.57 |
||
|
27005
|
27005
27005-S004 SWITCH-ASSY-IGNITION |
27005-S004 |
US $119.41 |
||
|
27008
|
27008
27008-S002 KEY-LOCK,BLANKKey-lock,blank,(type:c); (option) |
27008-S002 |
US $10.10 |
||
|
27008A
|
27008A
27008-S003 KEY-LOCK,BLANKKey-lock,blank,(type:d); (option) |
27008-S003 |
US $10.10 |
||
|
27010
|
27010
27010-S017 SWITCH,PARKING BRAKESwitch,parking brake; |
27010-S017 |
US $95.42 |
||
| replacement | |||||
|
27010
|
27010
27010-S055 Switch,parking BrakeSwitch,parking brake; |
27010-S055 |
US $109.70 |
||
|
28012
|
28012
28012-S001 REFLECTOR-REFLEX,FR SReflector-reflex,fr; |
28012-S001 |
US $14.35 |
||
|
28012A
|
28012A
28012-S003 REFLECTOR-REFLEX,RRReflector-reflex,rr; |
28012-S003 |
from US $12.83 |
||
| replacement | |||||
|
28012A
|
28012A
28012-S007 REFLECTOR-REFLEX,RRReflector-reflex,rr; |
28012-S007 |
from US $11.82 |
||
|
28012B
|
28012B
28012-S004
Reflector-reflex,rear
Reflector-reflex,rear side; |
28012-S004 |
— | ||
|
41085
|
41085
41085-S003 INDICATOR |
41085-S003 |
US $2.52 |
||
|
49006
|
49006
49006-S018 BOOT |
49006-S018 |
US $6.32 |
||
|
92038
|
92038
92038-S005 KEYCover,key; |
92038-S005 |
US $10.10 |
||
|
92171
|
92171
92171-S014 CLAMPClamp,l=125; |
92171-S014 |
from US $2.05 |
||
|
92171A
|
92171A
92171-S016 CLAMP,L:165Clamp,l=165; |
92171-S016 |
from US $1.44 |
||
| replacement | |||||
|
92171A
|
92171A
92171-S017 CLAMPClamp,l=165; |
92171-S017 |
from US $3.01 |
||
|
92171B
|
92171B
92171-S047 CLAMP,L=95Clamp,l=95; |
92171-S047 |
US $2.69 |
||
|
92171D
|
92171D
92171-S080 CLAMP |
92171-S080 |
US $3.35 |
||
|
92171E
|
92171E
92171-S081 CLAMP,WIRING HARNESSClamp,wiring harness; |
92171-S081 |
US $2.59 |
||
|
92172
|
92172
92172-S150 SCREWScrew,parking brake switch; |
92172-S150 |
US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S327 SCREWScrew,parking brake switch; |
92172-S327 |
US $1.21 |
||
|
92210
|
92210
92210-S067 NUT |
92210-S067 |
from US $0.95 |
||
| replacement | |||||
|
92210
|
92210
92210-S200 NUT |
92210-S200 |
from US $0.94 |
||
|
92210A
|
92210A
92210-S097 NUT |
92210-S097 |
US $1.21 |
||
| replacement | |||||
|
92210A
|
92210A
92210-S211 NUT |
92210-S211 |
US $1.21 |
||
