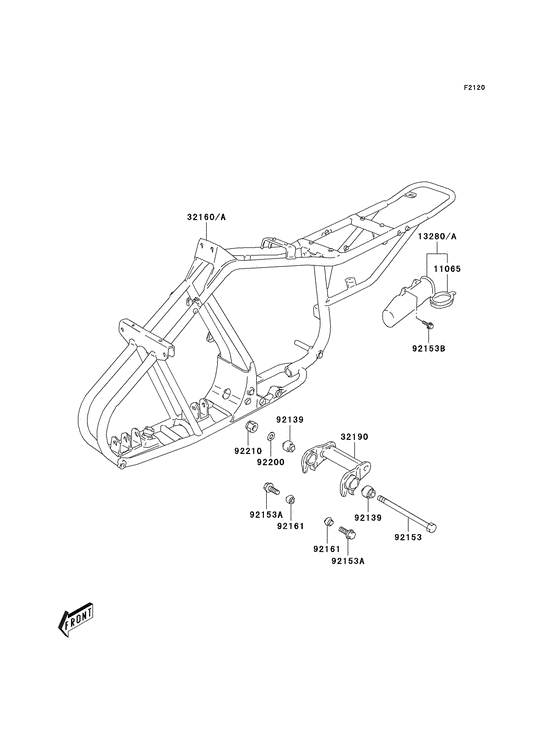

Frame Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A1
- Engine Capacity
- 79
- Year
- 2003
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-S026 CAP,TOOL HOLDERCap,tool holder; |
11065-S026 |
US $13.61 |
||
| replacement | |||||
|
11065
|
11065
11065-S079 CAP,TOOL HOLDERCap,tool holder; |
11065-S079 |
US $15.28 |
||
|
13280
|
13280
13280-S020 HOLDER,TOOLHolder,tool; |
13280-S020 |
US $52.02 |
||
|
13280A
|
13280A
13280-S022
Holder
Holder,tool; |
13280-S022 |
— | ||
|
32160
|
32160
32160-S006-503 FRAME-COMP,BLACKFrame-comp,black; |
32160-S006-503 |
US $809.78 |
||
|
32160A
|
32160A
32160-S008-503
Frame-comp
Frame-comp,black; |
32160-S008-503 |
— | ||
|
32190
|
32190
32190-S006-503 BRACKET-ENGINE,CRANKCBracket-engine,crankcase,black; |
32190-S006-503 |
US $73.98 |
||
|
92139
|
92139
92139-S018 BUSHING,CRANKCASE BRABushing,crankcase bracket; |
92139-S018 |
US $21.01 |
||
| replacement | |||||
|
92139
|
92139
92139-S056 Bushing,Crankcase BraBushing,crankcase bracket; |
92139-S056 |
US $26.28 |
||
|
92153
|
92153
92153-S212 BOLT,ENGINE MTGBolt,engine mtg; |
92153-S212 |
US $27.23 |
||
|
92153A
|
92153A
92153-S218 BOLT |
92153-S218 |
US $2.32 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S529 BOLT |
92153-S529 |
US $1.75 |
||
|
92153B
|
92153B
92153-S219 BOLT,TOOL HOLDERBolt,tool holder; |
92153-S219 |
US $1.35 |
||
|
92161
|
92161
92161-S075 DAMPER |
92161-S075 |
US $5.17 |
||
|
92200
|
92200
92200-S104 WASHER,ENGTNE MTGWasher,engtne mtg; |
92200-S104 |
US $1.78 |
||
|
92210
|
92210
92210-S078 NUT,ENGINE MTGNut,engine mtg; |
92210-S078 |
US $3.47 |
||
| replacement | |||||
|
92210
|
92210
92210-S224 Nut,engine MtgNut,engine mtg; |
92210-S224 |
US $3.47 |
||
