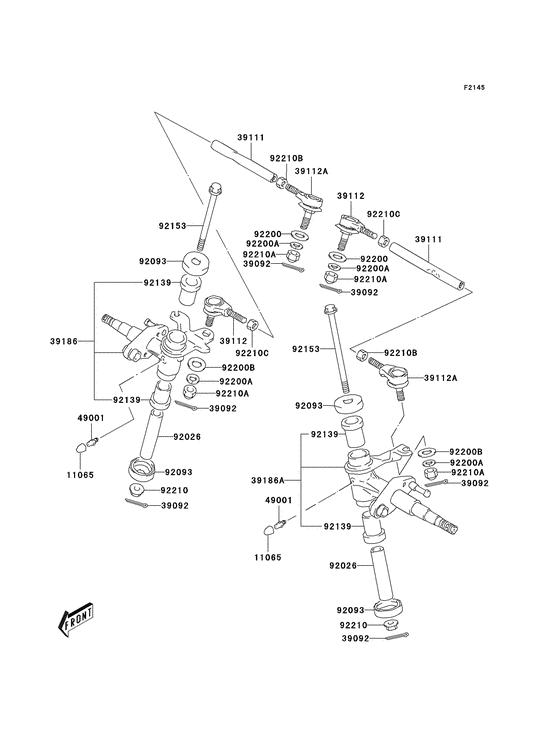

Knuckle arm Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A1
- Engine Capacity
- 79
- Year
- 2003
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-S028 CAP,GREASE NIPPLECap,grease nipple; |
11065-S028 |
US $2.48 |
||
|
39092
|
39092
39092-S005 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S005 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S014 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S014 |
US $2.48 |
||
|
39111
|
39111
39111-S003 ROD-TIE,STEERINGRod-tie,steering; |
39111-S003 |
US $17.28 |
||
|
39112
|
39112
39112-S003 RODEND-TIE,RHRodend-tie,rh; |
39112-S003 |
US $68.96 |
||
| replacement | |||||
|
39112
|
39112
39112-S013 RODEND-TIE,RHRodend-tie,rh; |
39112-S013 |
US $68.96 |
||
|
39112A
|
39112A
39112-S004 RODEND-TIE,LHRodend-tie,lh; |
39112-S004 |
US $68.96 |
||
| replacement | |||||
|
39112A
|
39112A
39112-S014 RODEND-TIE,LHRodend-tie,lh; |
39112-S014 |
US $68.96 |
||
|
39186
|
39186
39186-S003 KNUCKLE,RHKnuckle,rh; |
39186-S003 |
US $208.49 |
||
|
39186A
|
39186A
39186-S004 KNUCKLE,LHKnuckle,lh; |
39186-S004 |
US $208.49 |
||
|
49001
|
49001
49001-S002 NIPPLE-GREASE |
49001-S002 |
US $3.38 |
||
| replacement | |||||
|
49001
|
49001
49001-S004 NIPPLE-GREASE |
49001-S004 |
US $3.38 |
||
|
92026
|
92026
92026-S060 SPACER |
92026-S060 |
US $19.45 |
||
|
92093
|
92093
92093-S017 SEAL,KNUCKLE ARM DUSTSeal,knuckle arm dust; |
92093-S017 |
US $6.61 |
||
|
92139
|
92139
92139-S013 BUSHING |
92139-S013 |
US $22.54 |
||
|
92153
|
92153
92153-S202 BOLT,KNUCKLE ARMBolt,knuckle arm; |
92153-S202 |
US $10.24 |
||
|
92200
|
92200
92200-S095 WASHER,STEERING SHAFTWasher,steering shaft,lwr; |
92200-S095 |
US $2.23 |
||
|
92200A
|
92200A
92200-S096 WASHER,STEERING SHAFTWasher,steering shaft,lwr; |
92200-S096 |
US $5.36 |
||
|
92200B
|
92200B
92200-S097 WASHER,ROD-ENDWasher,rod-end; |
92200-S097 |
US $1.62 |
||
|
92210
|
92210
92210-S031 NUT |
92210-S031 |
from US $2.38 |
||
|
92210A
|
92210A
92210-S071 NUTNut,steering shaft; |
92210-S071 |
US $2.75 |
||
| replacement | |||||
|
92210A
|
92210A
92210-S210 NUTNut,steering shaft; |
92210-S210 |
US $2.75 |
||
|
92210B
|
92210B
92210-S072 NUT,TIE-RODNut,tie-rod; |
92210-S072 |
US $2.19 |
||
|
92210C
|
92210C
92210-S073 NUTNut,tie-rod; |
92210-S073 |
US $1.55 |
||
| replacement | |||||
|
92210C
|
92210C
92210-S216 NUTNut,tie-rod; |
92210-S216 |
US $3.03 |
||
