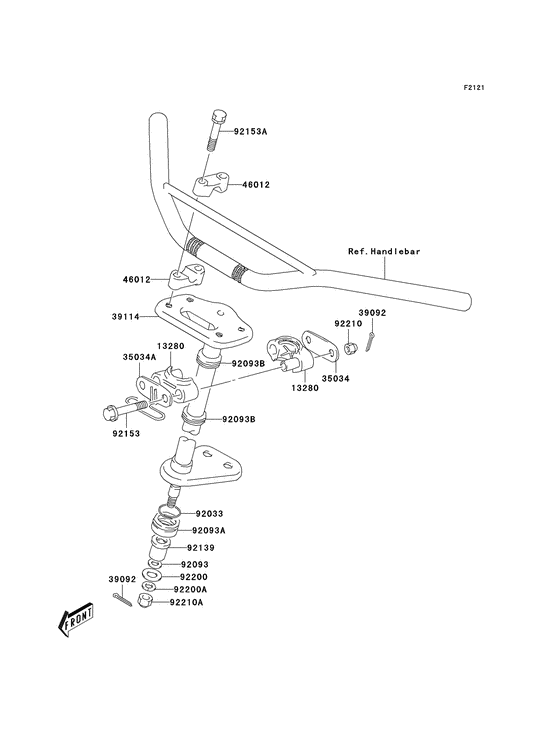

Steering shaft Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A1
- Engine Capacity
- 79
- Year
- 2003
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13280
|
13280
13280-S016 HOLDER,STEERING SHAFTHolder,steering shaft; |
13280-S016 |
US $16.73 |
||
|
35034
|
35034
35034-S002 REINFORCE,STEERING HOReinforce,steering holder; |
35034-S002 |
US $1.67 |
||
|
35034A
|
35034A
35034-S004 REINFORCE,STEERING HOReinforce,steering holder; |
35034-S004 |
US $8.51 |
||
|
39092
|
39092
39092-S005 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S005 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S014 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S014 |
US $2.48 |
||
|
39114
|
39114
39114-S002-503 SHAFT-COMP-STRG,BLACKShaft-comp-strg,black; |
39114-S002-503 |
US $124.20 |
||
|
46012
|
46012
46012-S003-504 HOLDER-HANDLE,BLACKHolder-handle,black; |
46012-S003-504 |
US $17.53 |
||
|
92033
|
92033
92033-S029 RING-SNAP,STEERING SHRing-snap,steering shaft; |
92033-S029 |
US $1.78 |
||
|
92093
|
92093
92093-S008 SEAL,REAR BRAKE CAMSeal,rear brake cam; |
92093-S008 |
US $7.41 |
||
|
92093A
|
92093A
92093-S016 SEAL,STEERING SHAFT DSeal,steering shaft dust; |
92093-S016 |
US $10.05 |
||
|
92093B
|
92093B
92093-S020 SEAL,STEERING SHAFTSeal,steering shaft; |
92093-S020 |
US $10.18 |
||
|
92139
|
92139
92139-S011 BUSHING,STEERING SHAFBushing,steering shaft; |
92139-S011 |
US $17.95 |
||
|
92153
|
92153
92153-S200 BOLT,STEERING SHAFT HBolt,steering shaft holder; |
92153-S200 |
US $2.38 |
||
|
92153A
|
92153A
92153-S229 BOLT,HANDLE CLAMPBolt,handle clamp; |
92153-S229 |
US $3.10 |
||
|
92200
|
92200
92200-S095 WASHER,STEERING SHAFTWasher,steering shaft,lwr; |
92200-S095 |
US $2.23 |
||
|
92200A
|
92200A
92200-S096 WASHER,STEERING SHAFTWasher,steering shaft,lwr; |
92200-S096 |
US $5.36 |
||
|
92210
|
92210
92210-S026 NUT |
92210-S026 |
from US $0.95 |
||
| replacement | |||||
|
92210
|
92210
92210-S183 NUT |
92210-S183 |
US $1.21 |
||
|
92210A
|
92210A
92210-S071 NUTNut,steering shaft; |
92210-S071 |
US $2.75 |
||
| replacement | |||||
|
92210A
|
92210A
92210-S210 NUTNut,steering shaft; |
92210-S210 |
US $2.75 |
||
