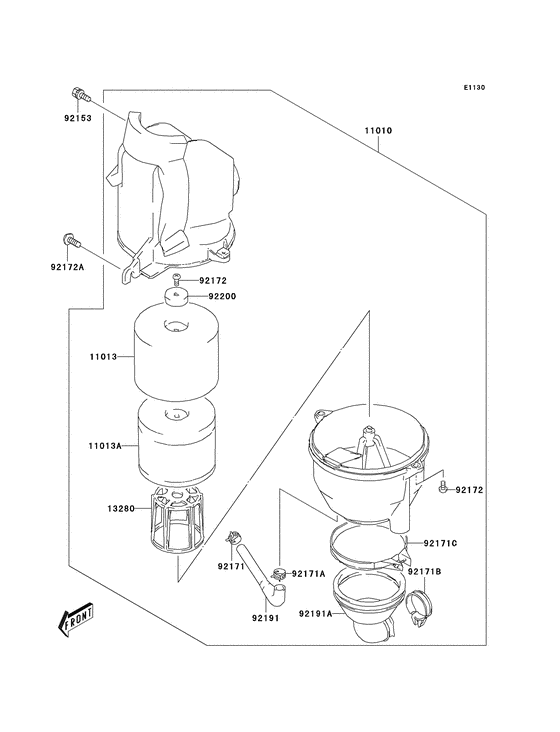

Air cleaner Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A3
- Engine Capacity
- 79
- Year
- 2005
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11010
|
11010
11010-S005
FILTER-ASSY-AIR
|
11010-S005 |
— | ||
|
11013
|
11013
11013-S007 ELEMENT-AIR FILTER,SUElement-air filter,sub; |
11013-S007 |
US $12.94 |
||
|
11013A
|
11013A
11013-S008 Element-air filter |
11013-S008 |
US $26.72 |
||
|
13280
|
13280
13280-S018 HOLDER,FILTERHolder,filter; |
13280-S018 |
US $11.44 |
||
|
92153
|
92153
92153-S073 BOLT |
92153-S073 |
from US $1.27 |
||
| replacement | |||||
|
92153
|
92153
92153-S515 BOLT |
92153-S515 |
US $1.21 |
||
|
92171
|
92171
92171-S005 CLAMP |
92171-S005 |
from US $1.58 |
||
|
92171A
|
92171A
92171-S069 CLAMP |
92171-S069 |
US $29.48 |
||
|
92171B
|
92171B
92171-S070 CLAMP |
92171-S070 |
US $4.19 |
||
| replacement | |||||
|
92171B
|
92171B
92171-S173 CLAMP |
92171-S173 |
US $7.33 |
||
|
92171C
|
92171C
92171-S071 CLAMP |
92171-S071 |
US $99.30 |
||
|
92172
|
92172
92172-S016 SCREW |
92172-S016 |
from US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S304 SCREW |
92172-S304 |
from US $0.94 |
||
|
92172A
|
92172A
92172-S161 SCREW,AIR CLEANERScrew,air cleaner; |
92172-S161 |
US $1.78 |
||
|
92191
|
92191
92191-S046 TUBE,DRAINTube,drain; |
92191-S046 |
US $16 |
||
| replacement | |||||
|
92191
|
92191
92191-S096 Tube,DrainTube,drain; |
92191-S096 |
US $19.75 |
||
|
92191A
|
92191A
92191-S047 TUBE,OUTLETTube,outlet; |
92191-S047 |
US $25.06 |
||
|
92200
|
92200
92200-S076 WASHER |
92200-S076 |
US $6.99 |
||
