	Description	OEM Part #	Price
13001	13001 13001-S005 PISTON-ENGINE	13001-S005	US $61.83
13002	13002 13002-S005 PIN-PISTON	13002-S005	US $9.66
13008	13008 13008-S005 RING-SET-PISTON Ring-set-piston,std;	13008-S005	US $43.74
13008A	13008A 13008-S006 RING-SET-PISTON,O/S 0 Ring-set-piston,o/s 0.50; (option)	13008-S006	US $47.34
13008B	13008B 13008-S007 RING-SET-PISTON,O/S 1 Ring-set-piston,o/s 1.00; (option)	13008-S007	US $52.02
13031	13031 13031-S005 Crankshaft-comp	13031-S005	US $369.60
13032	13032 13032-S006 ROD-CONNECTING	13032-S006	US $62.68
13033	13033 13033-S001 BEARING-SMALL END	13033-S001	US $12.05
13034	13034 13034-S005 BEARING-BIG END	13034-S005	US $16.70
13035	13035 13035-S005 PIN-CRANK	13035-S005	US $17.53
13037	13037 13037-S009 CRANKSHAFT,RH Crankshaft,rh;	13037-S009	US $93.44
13037A	13037A 13037-S010 CRANKSHAFT,LH Crankshaft,lh;	13037-S010	US $93.44
59051	59051 59051-S004 GEAR-SPUR,STARTER Gear-spur,starter;	59051-S004	US $76.62
92033	92033 92033-S024 RING-SNAP,PISTON PIN Ring-snap,piston pin;	92033-S024	US $2.26
92038	92038 92038-S001 KEY Key,magneto rotor;	92038-S001	from US $2.22
92045	92045 92045-S017 BEARING-BALL,20X47X14 Bearing-ball,20x47x14;	92045-S017	from US $22.89
92045A	92045A 92045-S039 BEARING-BALL,CRANKSHA Bearing-ball,crankshaft,rh;	92045-S039	US $25.18
92049	92049 92049-S034 SEAL-OIL,CRANKSHAFT Seal-oil,crankshaft;	92049-S034	US $9.52
92200	92200 92200-S105 WASHER	92200-S105	US $2.68
99996	99996 99996-S010 PISTON SET,O/S 0.50 Piston set,o/s 0.50; (option)	99996-S010	US $96.19
99996A	99996A 99996-S011 PISTON SET,O/S 1.00 Piston set,o/s 1.00; (option)	99996-S011	US $79.70

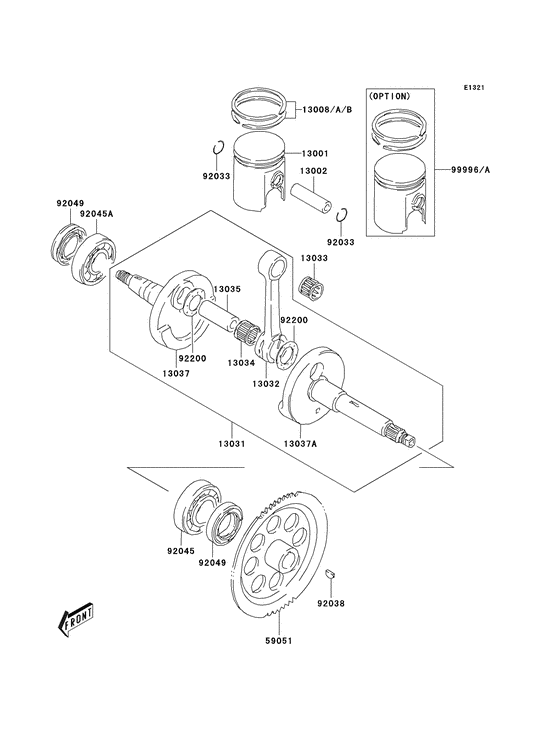

Crankshaft Diagram Kawasaki KSF80 KFX 80 USA 10398052-683598

Crankshaft Diagram Kawasaki KSF80 KFX 80 USA 10398052-683598
