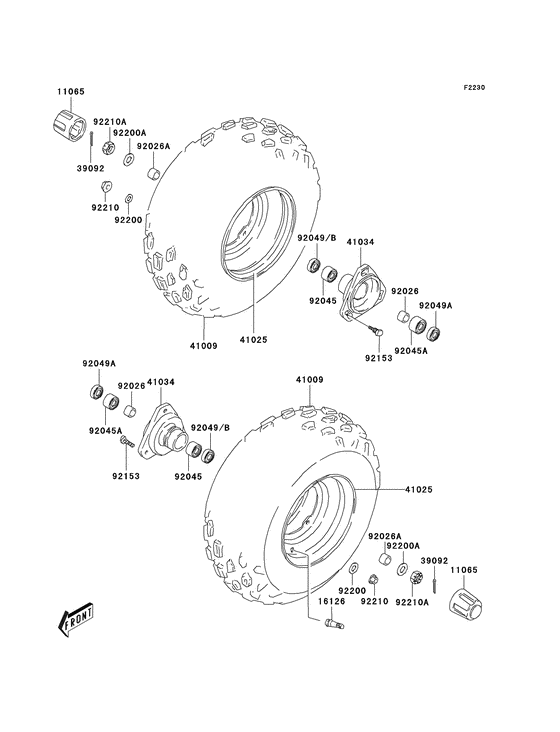

Front hub Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A3
- Engine Capacity
- 79
- Year
- 2005
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-S022 CAP,WHEELCap,wheel; |
11065-S022 |
US $15.50 |
||
|
16126
|
16126
16126-S008 VALVE,WHEEL RIMValve,wheel rim; |
16126-S008 |
US $8.41 |
||
|
39092
|
39092
39092-S007 PIN-HAIR |
39092-S007 |
from US $0.95 |
||
| replacement | |||||
|
39092
|
39092
39092-S017 PIN-HAIR |
39092-S017 |
US $2.48 |
||
|
41009
|
41009
41009-S010 TIRETire,at19x7-8(dunlop); |
41009-S010 |
US $149.53 |
||
|
41025
|
41025
41025-S007-530 RIM,FRONT WHEEL,S.METRim,front wheel,b.silver; |
41025-S007-530 |
US $215.68 |
||
|
41034
|
41034
41034-S004 DRUM-ASSY,FRDrum-assy,fr; |
41034-S004 |
US $93.44 |
||
|
92026
|
92026
92026-S061 SPACER,FRONT HUB BEARSpacer,front hub bearing; |
92026-S061 |
US $3.62 |
||
|
92026A
|
92026A
92026-S062 SPACER,FRONT AXLESpacer,front axle; |
92026-S062 |
US $3.62 |
||
|
92045
|
92045
92045-S036 BEARING-BALL,FRONT HUBearing-ball,front hub; |
92045-S036 |
US $29.04 |
||
|
92045A
|
92045A
92045-S037 BEARING-BALL,FRONT HUBearing-ball,front hub; |
92045-S037 |
US $38.44 |
||
|
92049A
|
92049A
92049-S032 SEAL-OIL,22X40X6Seal-oil,front hub; |
92049-S032 |
US $7.74 |
||
| replacement | |||||
|
92049A
|
92049A
92049-S072 SEAL-OIL,22X40X6Seal-oil,front hub; |
92049-S072 |
US $7.74 |
||
|
92049B
|
92049B
92049-S063 SEAL-OIL,FRONT HUB BRSeal-oil,front hub brg; |
92049-S063 |
US $6.40 |
||
|
92153
|
92153
92153-S230 BOLT,FRONT HUBBolt,front hub; |
92153-S230 |
US $2.03 |
||
|
92200
|
92200
92200-S092 WASHERWasher,magneto; |
92200-S092 |
US $1.24 |
||
| replacement | |||||
|
92200
|
92200
92200-S290 WASHERWasher,magneto; |
92200-S290 |
US $2.48 |
||
|
92200A
|
92200A
92200-S099 WASHERWasher,front axle; |
92200-S099 |
US $1.24 |
||
| replacement | |||||
|
92200A
|
92200A
92200-S291 WASHERWasher,front axle; |
92200-S291 |
US $2.48 |
||
|
92210
|
92210
92210-S005 NUT |
92210-S005 |
from US $1.27 |
||
| replacement | |||||
|
92210
|
92210
92210-S191 NUT |
92210-S191 |
from US $0.94 |
||
|
92210A
|
92210A
92210-S075 NUTNut,front axle; |
92210-S075 |
US $2.61 |
||
| replacement | |||||
|
92210A
|
92210A
92210-S217 NUTNut,front axle; |
92210-S217 |
US $4.27 |
||
