	Description	OEM Part #	Price
11061	11061 11061-S067 GASKET,REAR BRAKE DRU Gasket,rear brake drum;	11061-S067	US $8.80
11065	11065 11065-S022 CAP,WHEEL Cap,wheel;	11065-S022	US $15.50
11065A	11065A 11065-S028 CAP,GREASE NIPPLE Cap,grease nipple;	11065-S028	US $2.48
11065B	11065B 11065-S029 CAP,HOUSING SEAL Cap,housing seal;	11065-S029	US $1.76
13227	13227 13227-S003 HOUSING,REAR AXLE Housing,rear axle;	13227-S003	US $161.46
13271	13271 13271-S043 PLATE,REAR AXLE HOUSI Plate,rear axle housing,rh;	13271-S043	US $40.72
13271A	13271A 13271-S044 PLATE,REAR AXLE HOUSI Plate,rear axle housing,lh;	13271-S044	US $40.72
13271B	13271B 13271-S045 PLATE,MUFFLER Plate,muffler;	13271-S045	US $19.03
13280	13280 13280-S017 HOLDER,CENTER CAP Holder,center cap;	13280-S017	US $3.06
14091	14091 14091-S077 COVER,BRAKE DRUM Cover,brake drum;	14091-S077	US $54.61
16126	16126 16126-S008 VALVE,WHEEL RIM Valve,wheel rim;	16126-S008	US $8.41
39092	39092 39092-S010 PIN-HAIR,REAR HUB Pin-hair,rear hub;	39092-S010	US $1.21
	replacement
39092	39092 39092-S019 PIN-HAIR,REAR HUB Pin-hair,rear hub;	39092-S019	US $2.48
41009	41009 41009-S011 TIRE,AT19X7-8 Tire,at19x7-8(dunlop);	41009-S011	US $139.27
	replacement
41009	41009 41009-S025 TIRE,AT19X7-8 Tire,at19x7-8(dunlop);	41009-S025	from US $119.05
41025	41025 41025-S007-530 RIM,FRONT WHEEL,S.MET Rim,front wheel,b.silver;	41025-S007-530	US $215.68
41038	41038 41038-S002 DRUM,REAR BRAKE Drum,rear brake;	41038-S002	US $129.96
41046	41046 41046-S003 HOUSING-BEARING	41046-S003	US $114.97
41048	41048 41048-S006 SHOE-BRAKE	41048-S006	US $43.27
41050	41050 41050-S006 CAM-BRAKE,REAR BRAKE Cam-brake,rear brake;	41050-S006	US $16.33
41053	41053 41053-S007 LEVER-BRAKE CAM	41053-S007	US $12.29
41068	41068 41068-S008 AXLE,RR Axle,rr;	41068-S008	US $400.21
41085	41085 41085-S004 INDICATOR	41085-S004	US $2.59
42041	42041 42041-S005 SPROCKET-HUB,22T Sprocket-hub,22t;	42041-S005	US $46.82
49001	49001 49001-S002 NIPPLE-GREASE	49001-S002	US $3.38
	replacement
49001	49001 49001-S004 NIPPLE-GREASE	49001-S004	US $3.38
49030	49030 49030-S002 HUB,RR Hub,rr;	49030-S002	US $97.51
59071	59071 59071-S004 JOINT,BREATHER HOSE Joint,breather hose;	59071-S004	US $5.27
92026	92026 92026-S074 SPACER,REAR AXLE Spacer,rear axle;	92026-S074	US $12.58
92026A	92026A 92026-S077 SPACER,REAR BRAKE CAM Spacer,rear brake cam;	92026-S077	US $3.62
92043	92043 92043-S033 PIN,REAR BRAKE Pin,rear brake;	92043-S033	US $6.55
92045	92045 92045-S044 BEARING-BALL,REAR AXL Bearing-ball,rear axle;	92045-S044	US $35.41
	replacements
92045	92045 92045-S076 BEARING-BALL,REAR AXL Bearing-ball,rear axle;	92045-S076	from US $27.37
92045	92045 92045-S079 Bearing-Ball,Rear Axl Bearing-ball,rear axle;	92045-S079	US $33.01
92049	92049 92049-S040 SEAL-OIL,REAR AXLE,LH Seal-oil,rear axle,lh;	92049-S040	US $13.57
92049A	92049A 92049-S042 SEAL-OIL,REAR AXLE,RH Seal-oil,rear axle,rh;	92049-S042	US $10.64
92049B	92049B 92049-S043 SEAL-OIL,REAR BRAKE D Seal-oil,rear brake drum;	92049-S043	US $19.22
92049C	92049C 92049-S044 SEAL-OIL,REAR BRAKE D Seal-oil,rear brake drum;	92049-S044	US $8.75
92049D	92049D 92049-S046 SEAL-OIL,REAR AXLE,RH Seal-oil,rear axle,rh;	92049-S046	US $17.28
92055	92055 92055-S047 RING-O,BRAKE CAM Ring-o,brake cam;	92055-S047	US $1.76
92066	92066 92066-S025 PLUG,DRAIN Plug,drain;	92066-S025	US $1.75
92139	92139 92139-S020 BUSHING,REAR SHOCK Bushing,rear shock;	92139-S020	US $11.52
92145	92145 92145-S084 SPRING,BRAKE SHOE Spring,brake shoe;	92145-S084	US $3.98
92145A	92145A 92145-S086 SPRING,BRAKE CAM LEVE Spring,brake cam lever return;	92145-S086	US $3.62
92153	92153 92153-S068 BOLT	92153-S068	from US $1.43
	replacement
92153	92153 92153-S512 BOLT	92153-S512	US $1.55
92153A	92153A 92153-S220 BOLT Bolt,brush guard;	92153-S220	US $1.55
	replacement
92153A	92153A 92153-S490 BOLT Bolt,brush guard;	92153-S490	US $3.03
92153B	92153B 92153-S236 BOLT,REAR HUB Bolt,rear hub;	92153-S236	US $3.35
92153C	92153C 92153-S238 BOLT,REAR AXLE HOUSIN Bolt,rear axle housing;	92153-S238	US $8.41
92153D	92153D 92153-S239 BOLT,REAR AXLE HOUSIN Bolt,rear axle housing;	92153-S239	US $7.36
92171	92171 92171-S014 CLAMP Clamp,l=125;	92171-S014	from US $2.05
92172	92172 92172-S160 SCREW Screw,brake drum cover;	92172-S160	US $1.21
	replacement
92172	92172 92172-S328 SCREW Screw,brake drum cover;	92172-S328	US $24.80
92191	92191 92191-S050 TUBE,BRAKE BREATHER Tube,brake breather;	92191-S050	US $17.28
92200	92200 92200-S028 WASHER	92200-S028	from US $1.24
	replacement
92200	92200 92200-S288 WASHER	92200-S288	from US $0.94
92200A	92200A 92200-S092 WASHER Washer,magneto;	92200-S092	US $1.24
	replacement
92200A	92200A 92200-S290 WASHER Washer,magneto;	92200-S290	US $2.48
92200B	92200B 92200-S121 WASHER,REAR HUB Washer,rear hub;	92200-S121	US $2.68
92210	92210 92210-S004 NUT	92210-S004	from US $0.95
	replacement
92210	92210 92210-S182 NUT	92210-S182	US $2.48
92210A	92210A 92210-S005 NUT	92210-S005	from US $1.27
	replacement
92210A	92210A 92210-S191 NUT	92210-S191	from US $0.94
92210B	92210B 92210-S026 NUT	92210-S026	from US $0.95
	replacement
92210B	92210B 92210-S183 NUT	92210-S183	US $1.21
92210D	92210D 92210-S089 NUT,REAR HUB Nut,rear hub;	92210-S089	US $4.55
92210E	92210E 92210-S092 NUT,REAR AXLE Nut,rear axle;	92210-S092	US $4.77
92210F	92210F 92210-S094 NUT	92210-S094	US $2.75
	replacement
92210F	92210F 92210-S202 NUT	92210-S202	from US $1.87

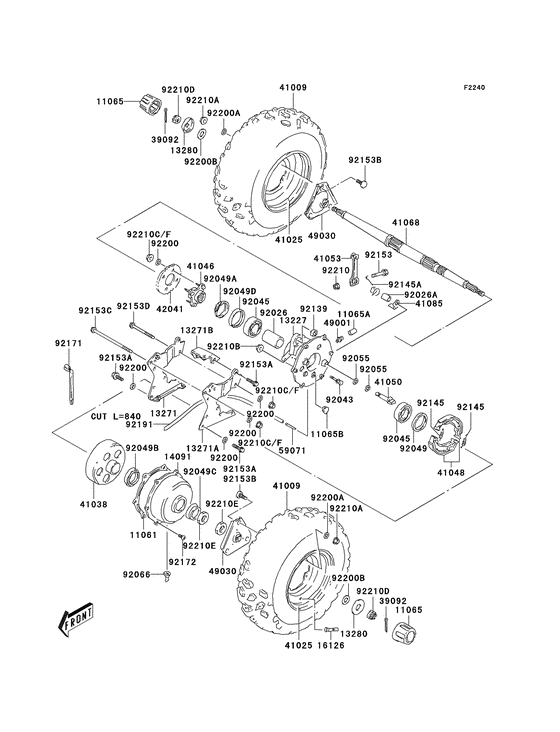

Rear hub Diagram Kawasaki KSF80 KFX 80 USA 10398073-683598

Rear hub Diagram Kawasaki KSF80 KFX 80 USA 10398073-683598
