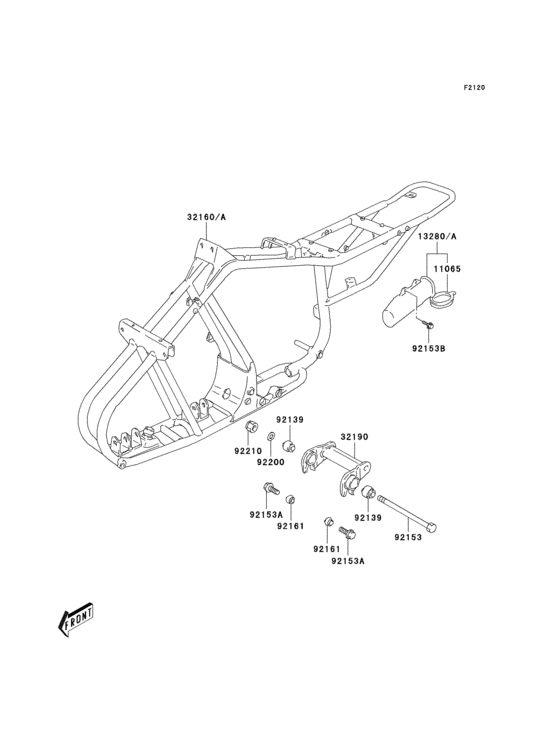

Frame Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A3
- Engine Capacity
- 79
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-S026 CAP,TOOL HOLDER |
11065-S026 |
US $13.61 |
||
| replacement | |||||
|
11065
|
11065
11065-S079 CAP,TOOL HOLDER |
11065-S079 |
US $15.28 |
||
|
13280A
|
13280A
13280-S022
Holder
|
13280-S022 |
— | ||
|
32160A
|
32160A
32160-S008-503
Frame-comp
|
32160-S008-503 |
— | ||
|
32190
|
32190
32190-S006-503 BRACKET-ENGINE,CRANKC |
32190-S006-503 |
US $73.98 |
||
|
92139
|
92139
92139-S018 BUSHING,CRANKCASE BRA |
92139-S018 |
US $21.01 |
||
| replacement | |||||
|
92139
|
92139
92139-S056 Bushing,Crankcase Bra |
92139-S056 |
US $26.28 |
||
|
92153
|
92153
92153-S212 BOLT,ENGINE MTG |
92153-S212 |
US $27.23 |
||
|
92153A
|
92153A
92153-S218 BOLT |
92153-S218 |
US $2.32 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S529 BOLT |
92153-S529 |
US $1.75 |
||
|
92153B
|
92153B
92153-S219 BOLT,TOOL HOLDER |
92153-S219 |
US $1.35 |
||
|
92161
|
92161
92161-S075 DAMPER |
92161-S075 |
US $5.17 |
||
|
92200
|
92200
92200-S104 WASHER,ENGTNE MTG |
92200-S104 |
US $1.78 |
||
|
92210
|
92210
92210-S078 NUT,ENGINE MTG |
92210-S078 |
US $3.47 |
||
| replacement | |||||
|
92210
|
92210
92210-S224 Nut,engine Mtg |
92210-S224 |
US $3.47 |
||
