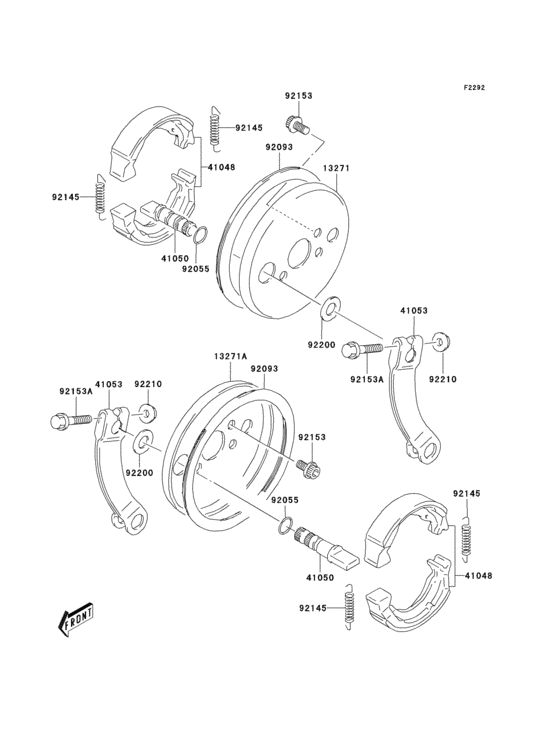

Front brake Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A3
- Engine Capacity
- 79
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13271
|
13271
13271-S041 PLATE,FRONT BRAKE |
13271-S041 |
US $17.28 |
||
|
13271A
|
13271A
13271-S042 PLATE,FRONT BRAKE |
13271-S042 |
US $17.28 |
||
|
41048
|
41048
41048-S004 SHOE-BRAKE |
41048-S004 |
US $30.92 |
||
|
41050
|
41050
41050-S004 CAM-BRAKE |
41050-S004 |
US $12.58 |
||
|
41053
|
41053
41053-S008 LEVER-BRAKE CAM |
41053-S008 |
US $10.80 |
||
|
92055
|
92055
92055-S040 RING-O,BRAKE CAM DUST |
92055-S040 |
US $2.93 |
||
|
92093
|
92093
92093-S021 SEAL,FRONT BRAKE DUST |
92093-S021 |
US $21.71 |
||
|
92145
|
92145
92145-S066 SPRING,BRAKE SHOE |
92145-S066 |
US $3.18 |
||
|
92153
|
92153
92153-S017 BOLT |
92153-S017 |
from US $1.11 |
||
| replacement | |||||
|
92153
|
92153
92153-S565 BOLT |
92153-S565 |
US $3.03 |
||
|
92153A
|
92153A
92153-S203 BOLT,BRAKE CAM LEVER |
92153-S203 |
US $1.75 |
||
|
92200
|
92200
92200-S092 WASHER |
92200-S092 |
US $1.24 |
||
| replacement | |||||
|
92200
|
92200
92200-S290 WASHER |
92200-S290 |
US $2.48 |
||
|
92210
|
92210
92210-S088 NUT,BRAKE CAM LEVER |
92210-S088 |
US $1.44 |
||
| replacement | |||||
|
92210
|
92210
92210-S215 NUT,BRAKE CAM LEVER |
92210-S215 |
US $2.48 |
||
