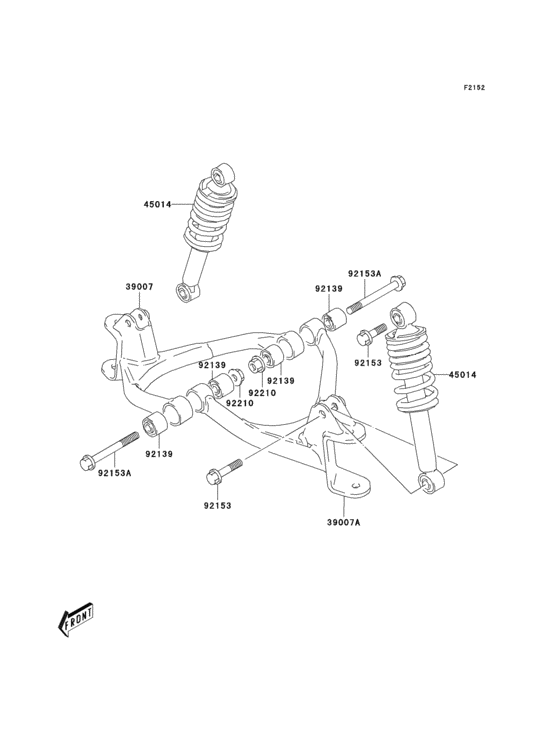

Front suspension Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A3
- Engine Capacity
- 79
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39007
|
39007
39007-S005-503 ARM-SUSP,RH,BLACK |
39007-S005-503 |
US $120.96 |
||
|
39007A
|
39007A
39007-S006-503 ARM-SUSP,LH,BLACK |
39007-S006-503 |
US $120.96 |
||
|
45014
|
45014
45014-S010-535 SHOCK ABSORBER,L.GREEN |
45014-S010-535 |
US $155.21 |
||
|
92139
|
92139
92139-S014 BUSHING,SUSPENSION AR |
92139-S014 |
US $19.02 |
||
|
92153
|
92153
92153-S033 BOLT,10X37 |
92153-S033 |
from US $2.23 |
||
|
92153A
|
92153A
92153-S201 BOLT,SUSPENSION ARM |
92153-S201 |
US $5 |
||
|
92210
|
92210
92210-S074 NUT,SUSPENSION ARM |
92210-S074 |
US $2.29 |
||
| replacement | |||||
|
92210
|
92210
92210-S222 NUT,SUSPENSION ARM |
92210-S222 |
from US $0.94 |
||
