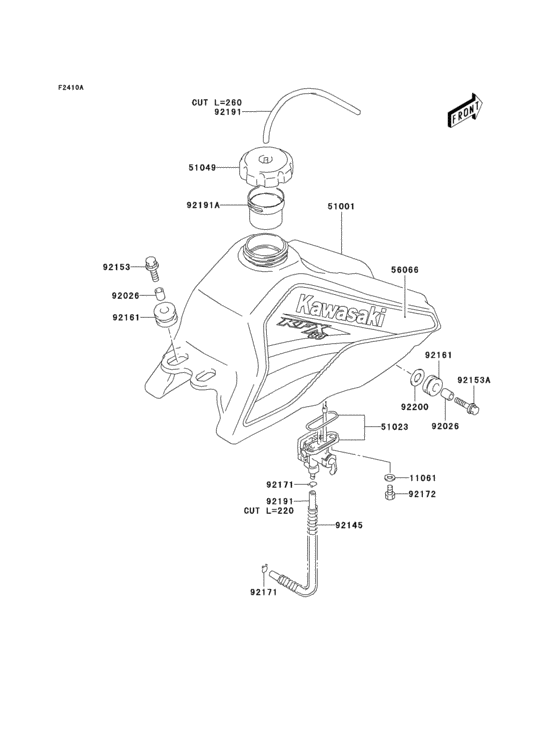

Fuel tank(ksf80-a3) Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A3
- Engine Capacity
- 79
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S002 GASKET |
11061-S002 |
from US $1.58 |
||
|
51001
|
51001
51001-S006-504 TANK-COMP-FUEL,BLACK |
51001-S006-504 |
US $319.03 |
||
|
51023
|
51023
51023-S006 TAP-ASSY |
51023-S006 |
US $114.97 |
||
| replacement | |||||
|
51023
|
51023
51023-S017 Tap-Assy |
51023-S017 |
US $151.32 |
||
|
51049
|
51049
51049-S007 CAP-TANK |
51049-S007 |
US $52.75 |
||
|
56066
|
56066
56066-S035-587 PATTERN,SET,WHT/BLK/G |
56066-S035-587 |
US $118.66 |
||
|
92026
|
92026
92026-S057 SPACER,FOOTREST |
92026-S057 |
US $2.20 |
||
|
92145
|
92145
92145-S080 SPRING,FUEL HOSE |
92145-S080 |
US $6.05 |
||
|
92153
|
92153
92153-S222 BOLT,FUEL TANK |
92153-S222 |
US $32.12 |
||
|
92153A
|
92153A
92153-S223 BOLT,FUEL TANK |
92153-S223 |
US $2.48 |
||
|
92161
|
92161
92161-S076 DAMPER,FUEL TANK |
92161-S076 |
US $1.78 |
||
|
92171
|
92171
92171-S062 CLAMP,OIL HOSE |
92171-S062 |
US $2.26 |
||
|
92172
|
92172
92172-S151 SCREW,FUEL COCK |
92172-S151 |
US $1.49 |
||
|
92191
|
92191
92191-S028 TUBE,FUEL TANK BREATH |
92191-S028 |
US $7.67 |
||
| replacement | |||||
|
92191
|
92191
92191-S091 Tube,Fuel Tank Breath |
92191-S091 |
US $9.91 |
||
|
92191A
|
92191A
92191-S029 TUBE,FUEL TANK FILLER |
92191-S029 |
US $9.57 |
||
|
92200
|
92200
92200-S093 WASHER,FOOTREST |
92200-S093 |
US $2.02 |
||
