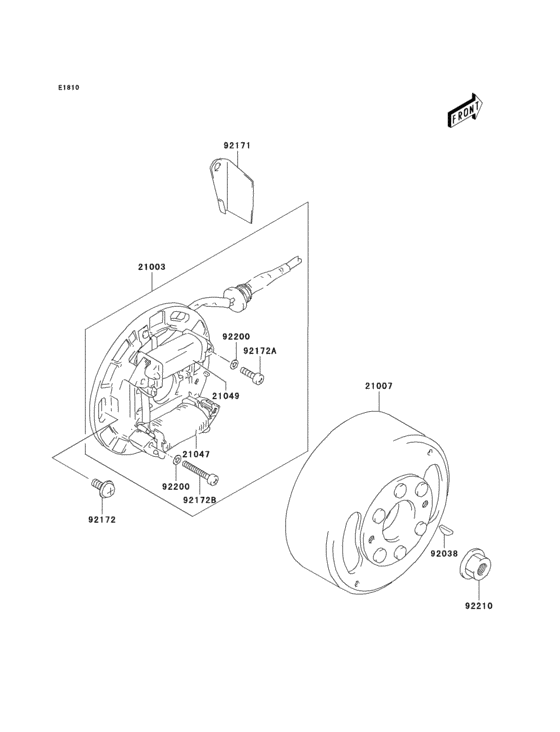

Generator Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A3
- Engine Capacity
- 79
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21003
|
21003
21003-S005 STATOR |
21003-S005 |
US $251.15 |
||
|
21007
|
21007
21007-S006 ROTOR |
21007-S006 |
US $236.65 |
||
|
21047
|
21047
21047-S001 COIL-LIGHTING |
21047-S001 |
US $62.57 |
||
|
21049
|
21049
21049-S001 COIL-EXCITING |
21049-S001 |
US $67.25 |
||
|
92038
|
92038
92038-S001 KEY |
92038-S001 |
from US $2.22 |
||
|
92171
|
92171
92171-S079 CLAMP,MAGNETO LEAD |
92171-S079 |
US $3.67 |
||
|
92172
|
92172
92172-S016 SCREW |
92172-S016 |
from US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S304 SCREW |
92172-S304 |
from US $0.94 |
||
|
92172A
|
92172A
92172-S148 SCREW |
92172-S148 |
US $1.21 |
||
| replacement | |||||
|
92172A
|
92172A
92172-S350 SCREW |
92172-S350 |
US $1.21 |
||
|
92172B
|
92172B
92172-S149 SCREW |
92172-S149 |
US $1.62 |
||
|
92200
|
92200
92200-S116 WASHER,LOCK |
92200-S116 |
US $1.55 |
||
|
92210
|
92210
92210-S005 NUT |
92210-S005 |
from US $1.27 |
||
| replacement | |||||
|
92210
|
92210
92210-S191 NUT |
92210-S191 |
from US $0.94 |
||
