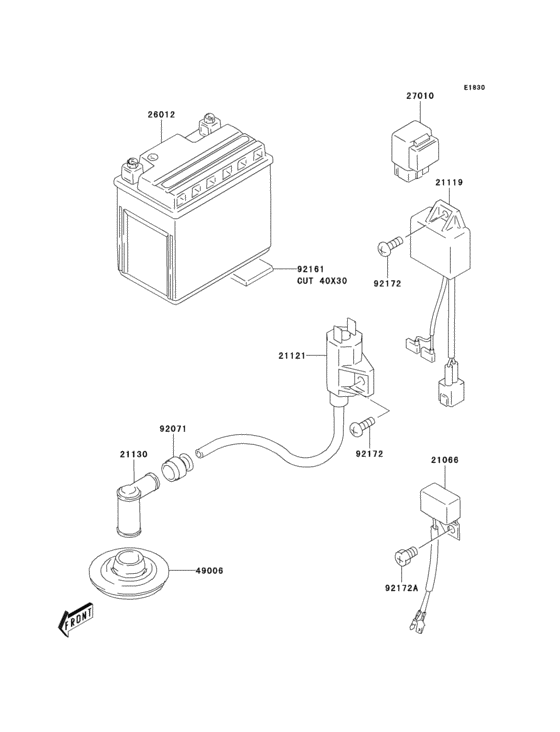

Ignition System Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A3
- Engine Capacity
- 79
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21066
|
21066
21066-S003 REGULATOR-VOLTAGE |
21066-S003 |
US $62.68 |
||
|
21119
|
21119
21119-S004 IGNITER |
21119-S004 |
US $204.42 |
||
|
21121
|
21121
21121-S007 COIL-IGNITION |
21121-S007 |
US $106.93 |
||
|
21130
|
21130
21130-S005 Cap-spark plug |
21130-S005 |
US $26.18 |
||
|
26012
|
26012
26012-S007 BATTRY,YTX5LBS,12V4AH |
26012-S007 |
US $111.22 |
||
| replacement | |||||
|
26012
|
26012
26012-S003
YTX5LBS,12V4AH
|
26012-S003 |
— | ||
|
27010
|
27010
27010-S016 SWITCH,STARTING MOTOR |
27010-S016 |
US $37.04 |
||
| replacement | |||||
|
27010
|
27010
27010-S058 Switch,Starting Motor |
27010-S058 |
US $44.39 |
||
|
49006
|
49006
49006-S016 BOOT,SPARK PLUG CAP |
49006-S016 |
US $6.39 |
||
|
92071
|
92071
92071-S004 GROMMET,HIGH TENSION |
92071-S004 |
from US $2.22 |
||
|
92161
|
92161
92161-S014 DAMPER,170X95X3.0 |
92161-S014 |
from US $4.14 |
||
|
92172
|
92172
92172-S021 Screw |
92172-S021 |
from US $0.95 |
||
| replacement | |||||
|
92172
|
92172
92172-S375 SCREW,6X16 |
92172-S375 |
from US $0.94 |
||
|
92172A
|
92172A
92172-S123 SCREW,OIL LEVEL |
92172-S123 |
US $1.13 |
||
