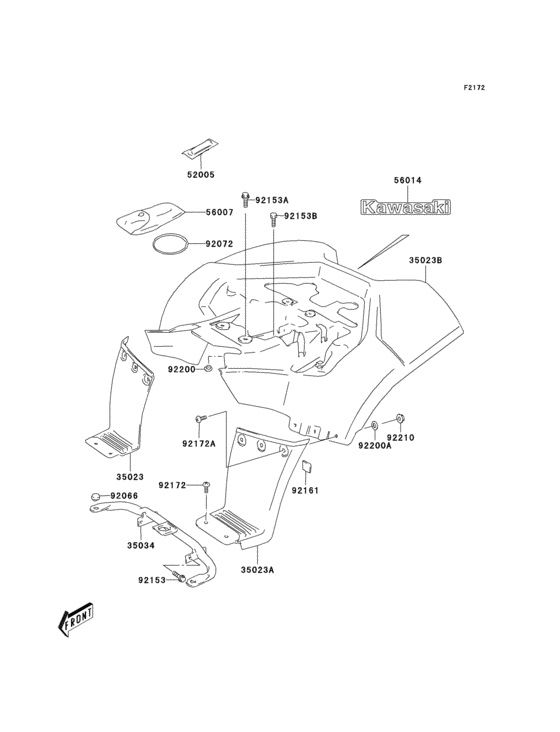

Rear fender(s) Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A3
- Engine Capacity
- 79
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35023
|
35023
35023-S006-504 FENDER-REAR,BLACK |
35023-S006-504 |
US $38.39 |
||
|
35023A
|
35023A
35023-S007-504 FENDER-REAR,BLACK |
35023-S007-504 |
US $38.39 |
||
|
35023B
|
35023B
35023-S008-535 FENDER-REAR,L.GREEN |
35023-S008-535 |
US $434.52 |
||
|
35034
|
35034
35034-S003 REINFORCE,REAR FENDER |
35034-S003 |
US $57.58 |
||
|
52005
|
52005
52005-S005 GAUGE |
52005-S005 |
US $45.50 |
||
|
56007
|
56007
56007-S004 TOOL-KIT |
56007-S004 |
US $28.44 |
||
|
56014
|
56014
56014-S012-554 EMBLEM,BLACK/L.GREEN |
56014-S012-554 |
US $9.79 |
||
|
92066
|
92066
92066-S026 PLUG |
92066-S026 |
US $1.78 |
||
|
92072
|
92072
92072-S006 BAND,TOOL |
92072-S006 |
US $3.35 |
||
|
92153
|
92153
92153-S012 BOLT |
92153-S012 |
from US $1.27 |
||
| replacement | |||||
|
92153
|
92153
92153-S502 BOLT |
92153-S502 |
from US $0.94 |
||
|
92153A
|
92153A
92153-S227 BOLT,REAR FENDER |
92153-S227 |
US $3.47 |
||
|
92153B
|
92153B
92153-S228 BOLT,REAR FENDER |
92153-S228 |
US $3.37 |
||
|
92161
|
92161
92161-S077 DAMPER |
92161-S077 |
from US $2.68 |
||
|
92172
|
92172
92172-S152 SCREW,FRONT FENDER |
92172-S152 |
from US $1.27 |
||
|
92172A
|
92172A
92172-S158 SCREW,REAR FENDER |
92172-S158 |
US $3.72 |
||
|
92200
|
92200
92200-S018 WASHER |
92200-S018 |
from US $1.67 |
||
|
92200A
|
92200A
92200-S119 WASHER,REAR FENDER |
92200-S119 |
from US $1.09 |
||
|
92210
|
92210
92210-S066 NUT |
92210-S066 |
US $3.47 |
||
