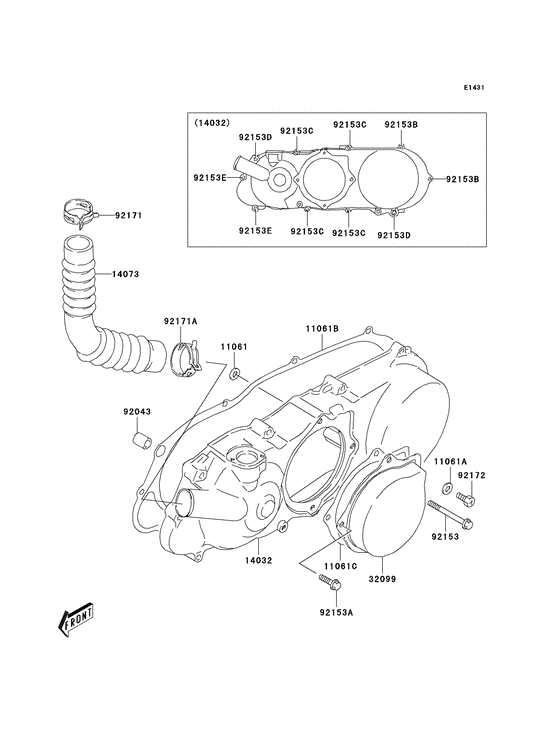

Engine cover Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80A6F
- Engine Capacity
- 79
- Year
- 2006
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S003 GASKET,7X15X0.6Gasket,7x15x0.6; |
11061-S003 |
from US $1.76 |
||
|
11061A
|
11061A
11061-S020 GASKET,8.2X14X1Gasket,8.2x14x1; |
11061-S020 |
from US $1.90 |
||
|
11061B
|
11061B
11061-S055 GASKET,CLUTCH COVERGasket,clutch cover; |
11061-S055 |
US $22.54 |
||
|
11061C
|
11061C
11061-S056 GASKET,RECOIL STARTERGasket,recoil starter; |
11061-S056 |
US $7.09 |
||
| replacement | |||||
|
11061C
|
11061C
11061-S116 Gasket,Recoil StarterGasket,recoil starter; |
11061-S116 |
US $10.39 |
||
|
14032
|
14032
14032-S006 COVER-CLUTCH |
14032-S006 |
US $191.54 |
||
|
14073
|
14073
14073-S005 DUCT,BELT COOLING,INDuct,belt cooling,in; |
14073-S005 |
US $15.39 |
||
|
32099
|
32099
32099-S004 CASE,RECOIL STARTERCase,recoil starter; |
32099-S004 |
US $16.33 |
||
|
92043
|
92043
92043-S003 PIN |
92043-S003 |
from US $1.90 |
||
|
92153
|
92153
92153-S006 BOLT |
92153-S006 |
from US $1.11 |
||
| replacement | |||||
|
92153
|
92153
92153-S592 BOLT |
92153-S592 |
US $3.03 |
||
|
92153A
|
92153A
92153-S193 BOLT,RECOIL STARTERBolt,recoil starter; |
92153-S193 |
US $4.39 |
||
|
92153B
|
92153B
92153-S210 BOLTBolt,clutch cover; |
92153-S210 |
US $1.78 |
||
| replacement | |||||
|
92153B
|
92153B
92153-S528 BOLTBolt,clutch cover; |
92153-S528 |
US $3.03 |
||
|
92153C
|
92153C
92153-S213 BOLT,CLUTCH COVERBolt,clutch cover; |
92153-S213 |
US $2 |
||
| replacement | |||||
|
92153C
|
92153C
92153-S574 BOLT,CLUTCH COVERBolt,clutch cover; |
92153-S574 |
US $3.03 |
||
|
92153D
|
92153D
92153-S214 BOLT |
92153-S214 |
US $2 |
||
| replacement | |||||
|
92153D
|
92153D
92153-S570 BOLT |
92153-S570 |
US $3.37 |
||
|
92153E
|
92153E
92153-S215 BOLT,STARTER MOTORBolt,starter motor; |
92153-S215 |
US $2.11 |
||
| replacement | |||||
|
92153E
|
92153E
92153-S585 BOLT,STARTER MOTORBolt,starter motor; |
92153-S585 |
US $3.76 |
||
|
92171
|
92171
92171-S066 CLAMP,BELT COOLINGClamp,belt cooling; |
92171-S066 |
US $7.41 |
||
|
92171A
|
92171A
92171-S067 CLAMP,BELT COOLINGClamp,belt cooling; |
92171-S067 |
US $4.77 |
||
|
92172
|
92172
92172-S159 SCREW,DRAINScrew,drain; |
92172-S159 |
US $1.39 |
||
