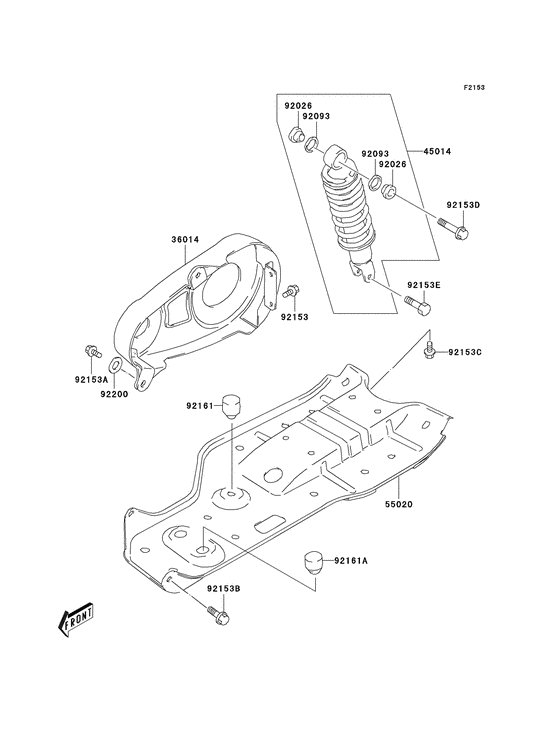

Rear suspension Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80A6F
- Engine Capacity
- 79
- Year
- 2006
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36014
|
36014
36014-S005 CASE-CHAIN |
36014-S005 |
US $51.26 |
||
|
45014
|
45014
45014-S029-908 SHOCK ABSORBER,L.GREENShockabsorber,l.green; |
45014-S029-908 |
US $270.13 |
||
|
55020
|
55020
55020-S012-503 GUARD,UNDER,BLACKGuard,under,black; |
55020-S012-503 |
US $71.28 |
||
|
92026
|
92026
92026-S073 SPACER |
92026-S073 |
US $13.57 |
||
|
92093
|
92093
92093-S022 SEAL |
92093-S022 |
US $7.47 |
||
|
92153
|
92153
92153-S010 BOLT |
92153-S010 |
from US $1.27 |
||
| replacements | |||||
|
92153
|
92153
92153-S501 BOLT |
92153-S501 |
from US $0.94 |
||
|
92153
|
92153
92153-3758 BOLT |
92153-3758 |
from US $22.89 |
||
|
92153A
|
92153A
92153-S012 BOLT |
92153-S012 |
from US $1.27 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S502 BOLT |
92153-S502 |
from US $0.94 |
||
|
92153B
|
92153B
92153-S232 BOLT,UNDER GUARD,FRBolt,under guard,fr; |
92153-S232 |
US $1.55 |
||
| replacement | |||||
|
92153B
|
92153B
92153-S530 BOLT,UNDER GUARD,FRBolt,under guard,fr; |
92153-S530 |
US $3.03 |
||
|
92153C
|
92153C
92153-S233 BOLT,UNDER GUARD,RRBolt,under guard,rr; |
92153-S233 |
US $1.55 |
||
| replacement | |||||
|
92153C
|
92153C
92153-S531 BOLT,UNDER GUARD,RRBolt,under guard,rr; |
92153-S531 |
US $3.03 |
||
|
92153D
|
92153D
92153-S234 BOLT,REAR SHOCKBolt,rear shock; |
92153-S234 |
US $5.42 |
||
|
92153E
|
92153E
92153-S235 BOLT,REAR SHOCKBolt,rear shock; |
92153-S235 |
US $3.35 |
||
|
92161
|
92161
92161-S082 DAMPER |
92161-S082 |
US $4.77 |
||
|
92161A
|
92161A
92161-S083 DAMPER |
92161-S083 |
US $1.94 |
||
|
92200
|
92200
92200-S120 WASHER,CHAIN CASEWasher,chain case; |
92200-S120 |
US $1.55 |
||
