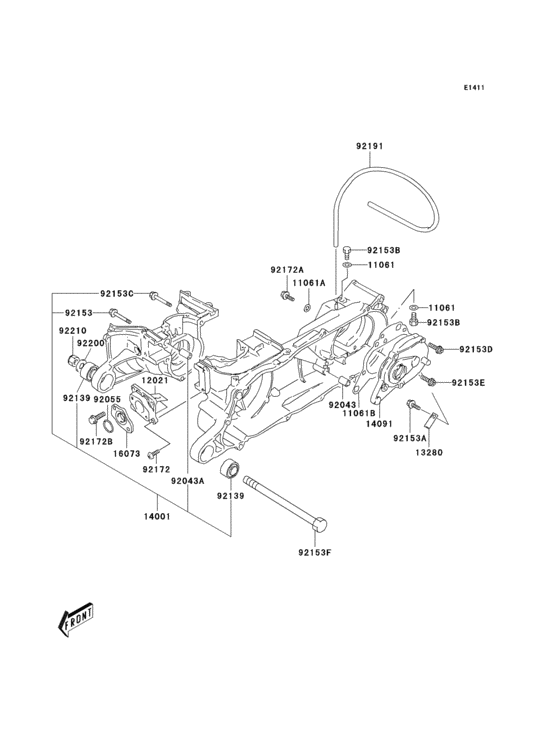

Crankcase Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80A6F
- Engine Capacity
- 79
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green No.2 (908)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S020 GASKET,8.2X14X1 |
11061-S020 |
from US $1.90 |
||
|
11061A
|
11061A
11061-S045 GASKET,OIL HOSE |
11061-S045 |
US $2.26 |
||
|
11061B
|
11061B
11061-S054 GASKET,GEAR BOX COVER |
11061-S054 |
US $12.41 |
||
|
12021
|
12021
12021-S001 VALVE-ASSY-REED |
12021-S001 |
US $76.03 |
||
| replacement | |||||
|
12021
|
12021
12021-S002 Valve-Assy-Reed |
12021-S002 |
US $92.38 |
||
|
13280
|
13280
13280-S007 HOLDER,GEAR BOX |
13280-S007 |
from US $11.40 |
||
|
14001
|
14001
14001-S003 SET-CRANKCASE |
14001-S003 |
US $455.90 |
||
| replacement | |||||
|
14001
|
14001
14001-S017 SET-CRANKCASE |
14001-S017 |
US $455.90 |
||
|
14091
|
14091
14091-S073 COVER,GEAR BOX |
14091-S073 |
US $49.72 |
||
| replacement | |||||
|
14091
|
14091
14091-S194 COVER,GEAR BOX |
14091-S194 |
US $49.72 |
||
|
16073
|
16073
16073-S001 INSULATOR,CARBURETOR |
16073-S001 |
US $9.66 |
||
|
92043
|
92043
92043-S002 PIN |
92043-S002 |
from US $1.49 |
||
|
92043A
|
92043A
92043-S003 PIN |
92043-S003 |
from US $1.90 |
||
|
92055
|
92055
92055-S042 RING-O,CARBURETOR INS |
92055-S042 |
US $3.15 |
||
|
92139
|
92139
92139-S016 BUSHING,ENGINE MTG |
92139-S016 |
US $23.15 |
||
|
92153
|
92153
92153-S008 BOLT |
92153-S008 |
from US $1.43 |
||
| replacement | |||||
|
92153
|
92153
92154-S011 BOLT |
92154-S011 |
from US $1.08 |
||
|
92153A
|
92153A
92153-S073 BOLT |
92153-S073 |
from US $1.27 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S515 BOLT |
92153-S515 |
US $1.21 |
||
|
92153B
|
92153B
92153-S108 BOLT |
92153-S108 |
from US $1.43 |
||
| replacement | |||||
|
92153B
|
92153B
92153-S489 BOLT |
92153-S489 |
from US $1.09 |
||
|
92153C
|
92153C
92153-S128 BOLT |
92153-S128 |
US $1.55 |
||
| replacement | |||||
|
92153C
|
92153C
92153-S561 BOLT |
92153-S561 |
US $3.03 |
||
|
92153D
|
92153D
92153-S210 BOLT |
92153-S210 |
US $1.78 |
||
| replacement | |||||
|
92153D
|
92153D
92153-S528 BOLT |
92153-S528 |
US $3.03 |
||
|
92153E
|
92153E
92153-S211 BOLT,GEAR BOX COVER |
92153-S211 |
US $2.23 |
||
| replacement | |||||
|
92153E
|
92153E
92153-S569 BOLT,GEAR BOX COVER |
92153-S569 |
US $1.55 |
||
|
92153F
|
92153F
92153-S212 BOLT,ENGINE MTG |
92153-S212 |
US $27.23 |
||
|
92172
|
92172
92172-S008 SCREW |
92172-S008 |
from US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S299 SCREW |
92172-S299 |
US $2.48 |
||
|
92172A
|
92172A
92172-S123 SCREW,OIL LEVEL |
92172-S123 |
US $1.13 |
||
|
92172B
|
92172B
92172-S136 SCREW,CARBURETOR |
92172-S136 |
US $3.94 |
||
|
92191
|
92191
92191-S028 TUBE,FUEL TANK BREATH |
92191-S028 |
US $7.67 |
||
| replacement | |||||
|
92191
|
92191
92191-S091 Tube,Fuel Tank Breath |
92191-S091 |
US $9.91 |
||
|
92200
|
92200
92200-S104 WASHER,ENGTNE MTG |
92200-S104 |
US $1.78 |
||
|
92210
|
92210
92210-S078 NUT,ENGINE MTG |
92210-S078 |
US $3.47 |
||
| replacement | |||||
|
92210
|
92210
92210-S224 Nut,engine Mtg |
92210-S224 |
US $3.47 |
||
