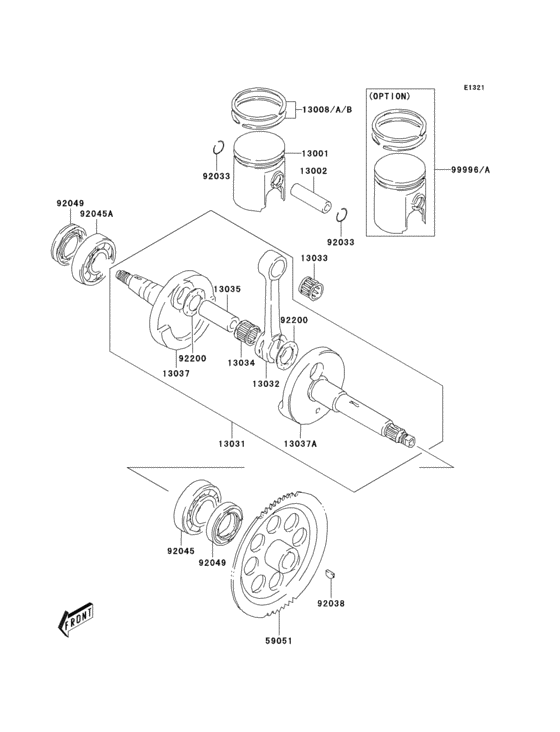

Crankshaft Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80A6F
- Engine Capacity
- 79
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green No.2 (908)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13001
|
13001
13001-S005 PISTON-ENGINE |
13001-S005 |
US $61.83 |
||
|
13002
|
13002
13002-S005 PIN-PISTON |
13002-S005 |
US $9.66 |
||
|
13008
|
13008
13008-S005 RING-SET-PISTON |
13008-S005 |
US $43.74 |
||
|
13008A
|
13008A
13008-S006 RING-SET-PISTON,O/S 0 |
13008-S006 |
US $47.34 |
||
|
13008B
|
13008B
13008-S007 RING-SET-PISTON,O/S 1 |
13008-S007 |
US $52.02 |
||
|
13031
|
13031
13031-S005 Crankshaft-comp |
13031-S005 |
US $369.60 |
||
|
13032
|
13032
13032-S006 ROD-CONNECTING |
13032-S006 |
US $62.68 |
||
|
13033
|
13033
13033-S001 BEARING-SMALL END |
13033-S001 |
US $12.05 |
||
|
13034
|
13034
13034-S005 BEARING-BIG END |
13034-S005 |
US $16.70 |
||
|
13035
|
13035
13035-S005 PIN-CRANK |
13035-S005 |
US $17.53 |
||
|
13037
|
13037
13037-S009 CRANKSHAFT,RH |
13037-S009 |
US $93.44 |
||
|
13037A
|
13037A
13037-S010 CRANKSHAFT,LH |
13037-S010 |
US $93.44 |
||
|
59051
|
59051
59051-S004 GEAR-SPUR,STARTER |
59051-S004 |
US $76.62 |
||
|
92033
|
92033
92033-S024 RING-SNAP,PISTON PIN |
92033-S024 |
US $2.26 |
||
|
92038
|
92038
92038-S001 KEY |
92038-S001 |
from US $2.22 |
||
|
92045
|
92045
92045-S017 BEARING-BALL,20X47X14 |
92045-S017 |
from US $22.89 |
||
|
92045A
|
92045A
92045-S039 BEARING-BALL,CRANKSHA |
92045-S039 |
US $25.18 |
||
|
92049
|
92049
92049-S034 SEAL-OIL,CRANKSHAFT |
92049-S034 |
US $9.52 |
||
|
92200
|
92200
92200-S105 WASHER |
92200-S105 |
US $2.68 |
||
|
99996
|
99996
99996-S010 PISTON SET,O/S 0.50 |
99996-S010 |
US $96.19 |
||
|
99996A
|
99996A
99996-S011 PISTON SET,O/S 1.00 |
99996-S011 |
US $79.70 |
