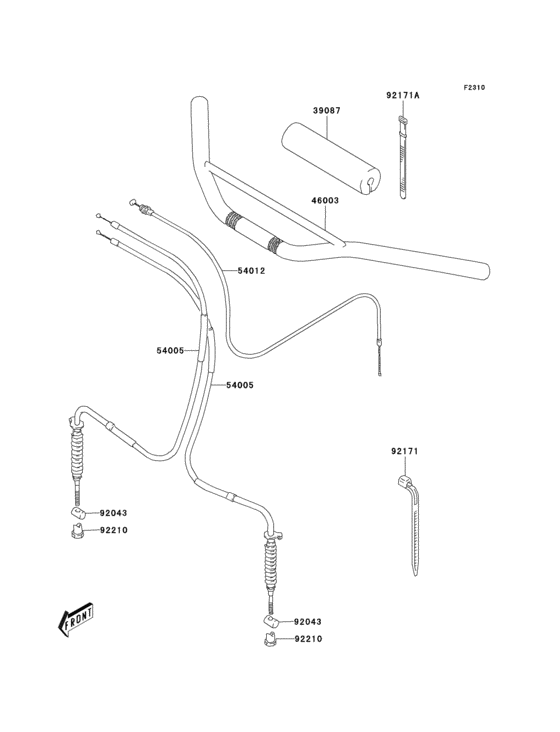

Handlebar Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80A6F
- Engine Capacity
- 79
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green No.2 (908)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39087
|
39087
39087-S003 PAD-HANDLE |
39087-S003 |
US $16.27 |
||
|
46003
|
46003
46003-S006-504 HANDLE,BLACK |
46003-S006-504 |
US $67.91 |
||
|
54005
|
54005
54005-S013 CABLE-BRAKE |
54005-S013 |
US $40.97 |
||
|
54012
|
54012
54012-S016 CABLE-THROTTLE |
54012-S016 |
US $18.87 |
||
|
92043
|
92043
92043-S023 PIN,BRAKE ROD ADJUSTE |
92043-S023 |
US $3.47 |
||
|
92171
|
92171
92171-S014 CLAMP |
92171-S014 |
from US $2.05 |
||
|
92171A
|
92171A
92171-S015 CLAMP,L:145 |
92171-S015 |
from US $2.59 |
||
|
92210
|
92210
92210-S086 NUT,FRONT BRAKE CABLE |
92210-S086 |
US $2.92 |
||
| replacement | |||||
|
92210
|
92210
92210-S219 NUT,FRONT BRAKE CABLE |
92210-S219 |
US $5.85 |
||
