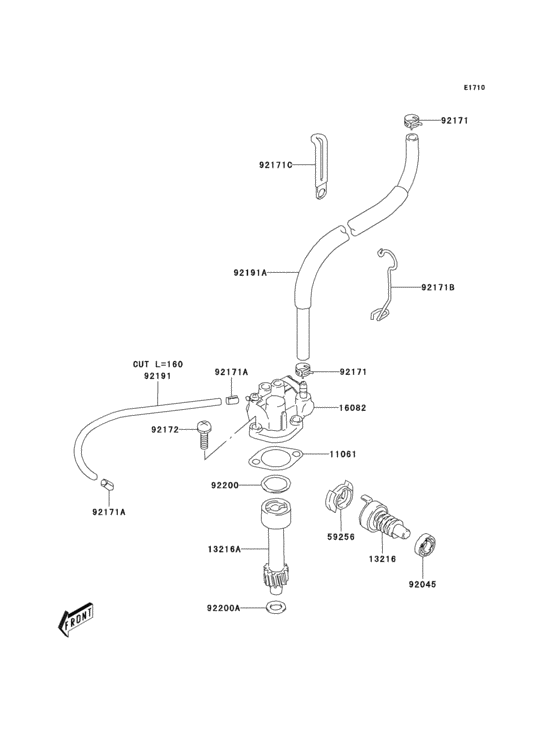

Oil pump/oil filter Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80A6F
- Engine Capacity
- 79
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green No.2 (908)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S060 GASKET,OIL PUMP |
11061-S060 |
US $4.23 |
||
|
13216
|
13216
13216-S005 GEAR-COMP,OIL PUMP DR |
13216-S005 |
US $49.66 |
||
|
13216A
|
13216A
13216-S006 GEAR-COMP,OIL PUMP DR |
13216-S006 |
US $31.34 |
||
|
16082
|
16082
16082-S003 PUMP-ASSY-OIL |
16082-S003 |
US $146.65 |
||
| replacement | |||||
|
16082
|
16082
16082-S006 Pump-Assy-Oil |
16082-S006 |
US $178.23 |
||
|
59256
|
59256
59256-S002 IMPELLER |
59256-S002 |
US $9.66 |
||
|
92045
|
92045
92045-S040 BEARING-BALL,OIL PUMP |
92045-S040 |
US $10.33 |
||
|
92171
|
92171
92171-S002 CLAMP |
92171-S002 |
from US $1.58 |
||
|
92171A
|
92171A
92171-S072 CLAMP,OIL HOSE |
92171-S072 |
US $3.43 |
||
|
92171B
|
92171B
92171-S073 CLAMP,OIL HOSE |
92171-S073 |
US $5 |
||
|
92171C
|
92171C
92171-S132 CLAMP,OIL HOSE NO.2 |
92171-S132 |
from US $2.22 |
||
|
92172
|
92172
92172-S140 SCREW,OIL PUMP |
92172-S140 |
US $1.55 |
||
| replacement | |||||
|
92172
|
92172
92172-S324 SCREW,OIL PUMP |
92172-S324 |
US $1.55 |
||
|
92191
|
92191
92191-S039 TUBE,BREATHER |
92191-S039 |
US $6.07 |
||
| replacement | |||||
|
92191
|
92191
92191-S101 Tube,Breather |
92191-S101 |
US $9.86 |
||
|
92191A
|
92191A
92191-S048 TUBE,OIL8 |
92191-S048 |
US $13.57 |
||
| replacement | |||||
|
92191A
|
92191A
92191-S097 Tube,Oil8 |
92191-S097 |
US $15.39 |
||
|
92200
|
92200
92200-S062 WASHER |
92200-S062 |
US $2.20 |
||
|
92200A
|
92200A
92200-S111 WASHER,OIL PUMP DRIVE |
92200-S111 |
US $1.67 |
||
