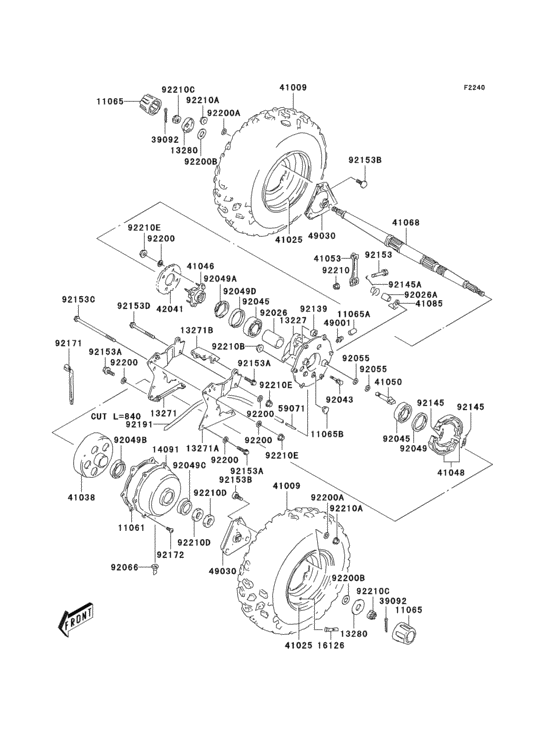

Rear hub(1/2) Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80A6F
- Engine Capacity
- 79
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green No.2 (908)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S067 GASKET,REAR BRAKE DRU |
11061-S067 |
US $8.80 |
||
|
11065
|
11065
11065-S022 CAP,WHEEL |
11065-S022 |
US $15.50 |
||
|
11065A
|
11065A
11065-S028 CAP,GREASE NIPPLE |
11065-S028 |
US $2.48 |
||
|
11065B
|
11065B
11065-S029 CAP,HOUSING SEAL |
11065-S029 |
US $1.76 |
||
|
13227
|
13227
13227-S003 HOUSING,REAR AXLE |
13227-S003 |
US $161.46 |
||
|
13271
|
13271
13271-S043 PLATE,REAR AXLE HOUSI |
13271-S043 |
US $40.72 |
||
|
13271A
|
13271A
13271-S044 PLATE,REAR AXLE HOUSI |
13271-S044 |
US $40.72 |
||
|
13271B
|
13271B
13271-S045 PLATE,MUFFLER |
13271-S045 |
US $19.03 |
||
|
13280
|
13280
13280-S017 HOLDER,CENTER CAP |
13280-S017 |
US $3.06 |
||
|
14091
|
14091
14091-S077 COVER,BRAKE DRUM |
14091-S077 |
US $54.61 |
||
|
16126
|
16126
16126-S008 VALVE,WHEEL RIM |
16126-S008 |
US $8.41 |
||
|
39092
|
39092
39092-S010 PIN-HAIR,REAR HUB |
39092-S010 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S019 PIN-HAIR,REAR HUB |
39092-S019 |
US $2.48 |
||
|
41009
|
41009
41009-S011 TIRE,AT19X7-8 |
41009-S011 |
US $139.27 |
||
| replacement | |||||
|
41009
|
41009
41009-S025 TIRE,AT19X7-8 |
41009-S025 |
from US $119.05 |
||
|
41025
|
41025
41025-S007-530 RIM,FRONT WHEEL,S.MET |
41025-S007-530 |
US $215.68 |
||
|
41038
|
41038
41038-S002 DRUM,REAR BRAKE |
41038-S002 |
US $129.96 |
||
|
41046
|
41046
41046-S003 HOUSING-BEARING |
41046-S003 |
US $114.97 |
||
|
41048
|
41048
41048-S006 SHOE-BRAKE |
41048-S006 |
US $43.27 |
||
|
41050
|
41050
41050-S006 CAM-BRAKE,REAR BRAKE |
41050-S006 |
US $16.33 |
||
|
41053
|
41053
41053-S007 LEVER-BRAKE CAM |
41053-S007 |
US $12.29 |
||
|
41068
|
41068
41068-S008 AXLE,RR |
41068-S008 |
US $400.21 |
||
|
41085
|
41085
41085-S004 INDICATOR |
41085-S004 |
US $2.59 |
||
|
42041
|
42041
42041-S005 SPROCKET-HUB,22T |
42041-S005 |
US $46.82 |
||
|
49001
|
49001
49001-S002 NIPPLE-GREASE |
49001-S002 |
US $3.38 |
||
| replacement | |||||
|
49001
|
49001
49001-S004 NIPPLE-GREASE |
49001-S004 |
US $3.38 |
||
|
49030
|
49030
49030-S002 HUB,RR |
49030-S002 |
US $97.51 |
||
|
59071
|
59071
59071-S004 JOINT,BREATHER HOSE |
59071-S004 |
US $5.27 |
||
|
92026
|
92026
92026-S074 SPACER,REAR AXLE |
92026-S074 |
US $12.58 |
||
|
92026A
|
92026A
92026-S077 SPACER,REAR BRAKE CAM |
92026-S077 |
US $3.62 |
||
|
92043
|
92043
92043-S033 PIN,REAR BRAKE |
92043-S033 |
US $6.55 |
||
|
92045
|
92045
92045-S044 BEARING-BALL,REAR AXL |
92045-S044 |
US $35.41 |
||
| replacements | |||||
|
92045
|
92045
92045-S076 BEARING-BALL,REAR AXL |
92045-S076 |
from US $27.37 |
||
|
92045
|
92045
92045-S079 Bearing-Ball,Rear Axl |
92045-S079 |
US $33.01 |
||
|
92049
|
92049
92049-S040 SEAL-OIL,REAR AXLE,LH |
92049-S040 |
US $13.57 |
||
|
92049A
|
92049A
92049-S042 SEAL-OIL,REAR AXLE,RH |
92049-S042 |
US $10.64 |
||
|
92049B
|
92049B
92049-S043 SEAL-OIL,REAR BRAKE D |
92049-S043 |
US $19.22 |
||
|
92049C
|
92049C
92049-S044 SEAL-OIL,REAR BRAKE D |
92049-S044 |
US $8.75 |
||
|
92049D
|
92049D
92049-S046 SEAL-OIL,REAR AXLE,RH |
92049-S046 |
US $17.28 |
||
|
92055
|
92055
92055-S047 RING-O,BRAKE CAM |
92055-S047 |
US $1.76 |
||
|
92066
|
92066
92066-S025 PLUG,DRAIN |
92066-S025 |
US $1.75 |
||
|
92139
|
92139
92139-S020 BUSHING,REAR SHOCK |
92139-S020 |
US $11.52 |
||
|
92145
|
92145
92145-S084 SPRING,BRAKE SHOE |
92145-S084 |
US $3.98 |
||
|
92145A
|
92145A
92145-S086 SPRING,BRAKE CAM LEVE |
92145-S086 |
US $3.62 |
||
|
92153
|
92153
92153-S068 BOLT |
92153-S068 |
from US $1.43 |
||
| replacement | |||||
|
92153
|
92153
92153-S512 BOLT |
92153-S512 |
US $1.55 |
||
|
92153A
|
92153A
92153-S220 BOLT |
92153-S220 |
US $1.55 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S490 BOLT |
92153-S490 |
US $3.03 |
||
|
92153B
|
92153B
92153-S236 BOLT,REAR HUB |
92153-S236 |
US $3.35 |
||
|
92153C
|
92153C
92153-S238 BOLT,REAR AXLE HOUSIN |
92153-S238 |
US $8.41 |
||
|
92153D
|
92153D
92153-S239 BOLT,REAR AXLE HOUSIN |
92153-S239 |
US $7.36 |
||
|
92171
|
92171
92171-S166 CLAMP |
92171-S166 |
US $2.75 |
||
|
92172
|
92172
92172-S160 SCREW |
92172-S160 |
US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S328 SCREW |
92172-S328 |
US $24.80 |
||
|
92191
|
92191
92191-S050 TUBE,BRAKE BREATHER |
92191-S050 |
US $17.28 |
||
|
92200
|
92200
92200-S028 WASHER |
92200-S028 |
from US $1.24 |
||
| replacement | |||||
|
92200
|
92200
92200-S288 WASHER |
92200-S288 |
from US $0.94 |
||
|
92200A
|
92200A
92200-S092 WASHER |
92200-S092 |
US $1.24 |
||
| replacement | |||||
|
92200A
|
92200A
92200-S290 WASHER |
92200-S290 |
US $2.48 |
||
|
92200B
|
92200B
92200-S121 WASHER,REAR HUB |
92200-S121 |
US $2.68 |
||
|
92210
|
92210
92210-S004 NUT |
92210-S004 |
from US $0.95 |
||
| replacement | |||||
|
92210
|
92210
92210-S182 NUT |
92210-S182 |
US $2.48 |
||
|
92210A
|
92210A
92210-S005 NUT |
92210-S005 |
from US $1.27 |
||
| replacement | |||||
|
92210A
|
92210A
92210-S191 NUT |
92210-S191 |
from US $0.94 |
||
|
92210B
|
92210B
92210-S026 NUT |
92210-S026 |
from US $0.95 |
||
| replacement | |||||
|
92210B
|
92210B
92210-S183 NUT |
92210-S183 |
US $1.21 |
||
|
92210C
|
92210C
92210-S089 NUT,REAR HUB |
92210-S089 |
US $4.55 |
||
|
92210D
|
92210D
92210-S092 NUT,REAR AXLE |
92210-S092 |
US $4.77 |
||
|
92210E
|
92210E
92210-S094 NUT |
92210-S094 |
US $2.75 |
||
| replacement | |||||
|
92210E
|
92210E
92210-S202 NUT |
92210-S202 |
from US $1.87 |
||
