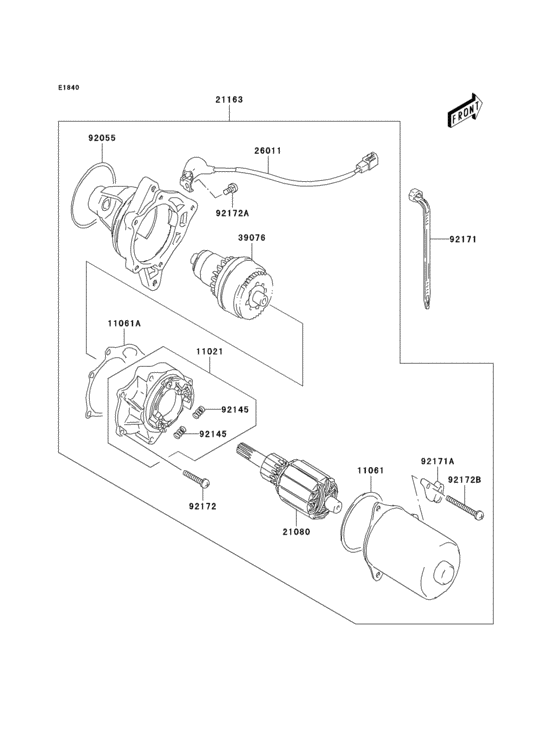

Starter motor Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80A6F
- Engine Capacity
- 79
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green No.2 (908)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11021
|
11021
11021-S001 CASE-ASSY |
11021-S001 |
US $67.91 |
||
|
11061
|
11061
11061-S063 GASKET |
11061-S063 |
US $6.93 |
||
|
11061A
|
11061A
11061-S068 GASKET |
11061-S068 |
US $7.83 |
||
|
21080
|
21080
21080-S001 ARMATURE |
21080-S001 |
US $145.75 |
||
|
21163
|
21163
21163-S003 Starter-electric |
21163-S003 |
US $419.93 |
||
|
26011
|
26011
26011-S009 WIRE-LEAD |
26011-S009 |
US $21.91 |
||
|
39076
|
39076
39076-S003 LIMITER,PINION |
39076-S003 |
US $129.96 |
||
|
92055
|
92055
92055-S046 RING-O |
92055-S046 |
US $3.47 |
||
|
92145
|
92145
92145-S077 SPRING,BRUSH |
92145-S077 |
US $3.35 |
||
|
92171
|
92171
92171-S014 CLAMP |
92171-S014 |
from US $2.05 |
||
|
92171A
|
92171A
92171-S078 CLAMP,LEAD WIRE |
92171-S078 |
US $8.19 |
||
|
92172
|
92172
92172-S145 SCREW |
92172-S145 |
US $1.19 |
||
| replacement | |||||
|
92172
|
92172
92172-S374 SCREW |
92172-S374 |
US $1.19 |
||
|
92172A
|
92172A
92172-S146 SCREW |
92172-S146 |
US $1.39 |
||
| replacement | |||||
|
92172A
|
92172A
92172-S349 SCREW |
92172-S349 |
US $1.21 |
||
|
92172B
|
92172B
92172-S147 SCREW |
92172-S147 |
US $1.87 |
||
