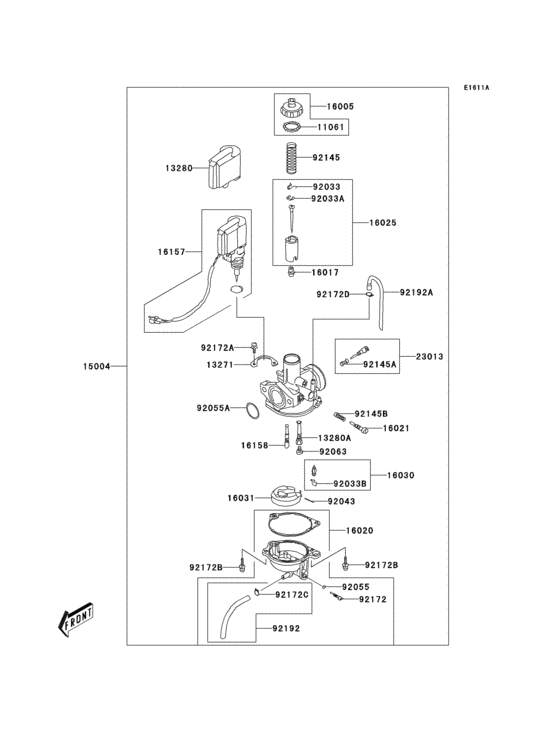

Carburetor(a8f-aaf) Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90A8F
- Engine Capacity
- 89
- Year
- 2008
- Sales region
- Australia
- Colour
- Lime Green (930)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-Y001 GASKET |
11061-Y001 |
US $4.49 |
||
|
13271
|
13271
13271-Y001 PLATE |
13271-Y001 |
US $1.39 |
||
| replacement | |||||
|
13271
|
13271
13272-Y011 PLATE |
13272-Y011 |
from US $1.09 |
||
|
13280
|
13280
13280-Y008 HOLDER,CAP |
13280-Y008 |
US $2.45 |
||
|
13280A
|
13280A
13280-Y009 HOLDER,NEEDLE JET |
13280-Y009 |
US $13.16 |
||
|
15004
|
15004
15004-Y002 CARBURETOR,ATV0801 |
15004-Y002 |
US $300.22 |
||
| replacement | |||||
|
15004
|
15004
15004-Y008 CARBURETOR-ASSY |
15004-Y008 |
from US $258.16 |
||
|
16005
|
16005
16005-Y001 TOP-CHAMBER |
16005-Y001 |
US $29.80 |
||
|
16017
|
16017
16017-Y001 JET-NEEDLE |
16017-Y001 |
US $39.63 |
||
|
16020
|
16020
16020-Y001 CHAMBER-FLOAT |
16020-Y001 |
US $112.74 |
||
|
16021
|
16021
16021-Y001 SCREW-THROTTLE STOP |
16021-Y001 |
US $4.49 |
||
|
16025
|
16025
16025-Y001 VALVE-THROTTLE |
16025-Y001 |
US $111.93 |
||
|
16030
|
16030
16030-Y002 VALVE-FLOAT,ASSY |
16030-Y002 |
US $18.68 |
||
|
16031
|
16031
16031-Y001 FLOAT |
16031-Y001 |
US $53.04 |
||
|
16157
|
16157
16157-Y001 JET-STARTER |
16157-Y001 |
US $141.68 |
||
|
16158
|
16158
16158-Y001 JET-SLOW |
16158-Y001 |
US $15.59 |
||
|
23013
|
23013
23013-Y001 SCREW-ASSY,ADJUST |
23013-Y001 |
US $4.49 |
||
|
92033
|
92033
92033-Y002 RING-SNAP |
92033-Y002 |
US $2.92 |
||
|
92033A
|
92033A
92033-Y003 RING-SNAP |
92033-Y003 |
US $2.41 |
||
|
92033B
|
92033B
92033-Y004 RING-SNAP |
92033-Y004 |
US $4.49 |
||
|
92043
|
92043
92043-Y002 PIN |
92043-Y002 |
US $2.28 |
||
|
92055
|
92055
92055-Y001 RING-O |
92055-Y001 |
US $2.23 |
||
|
92055A
|
92055A
92055-Y016 RING-O |
92055-Y016 |
US $2.28 |
||
|
92063
|
92063
92063-Y001 JET-MAIN |
92063-Y001 |
US $21 |
||
|
92145
|
92145
92145-Y002 SPRING |
92145-Y002 |
US $2.92 |
||
|
92145A
|
92145A
92145-Y003 SPRING |
92145-Y003 |
US $11.40 |
||
|
92145B
|
92145B
92145-Y004 SPRING |
92145-Y004 |
US $1.17 |
||
|
92172
|
92172
92172-Y001 SCREW,DRAIN |
92172-Y001 |
US $30.25 |
||
|
92172A
|
92172A
92172-Y012 SCREW |
92172-Y012 |
from US $0.46 |
||
|
92172B
|
92172B
92172-Y013 SCREW |
92172-Y013 |
US $1.07 |
||
|
92172C
|
92172C
92172-Y022 CLAMP |
92172-Y022 |
US $1.17 |
||
|
92172D
|
92172D
92172-Y023 CLAMP |
92172-Y023 |
US $1.75 |
||
|
92192
|
92192
92192-Y006 TUBE,ASSY |
92192-Y006 |
US $3.86 |
||
|
92192A
|
92192A
92192-Y011 TUBE |
92192-Y011 |
US $6.63 |
||
