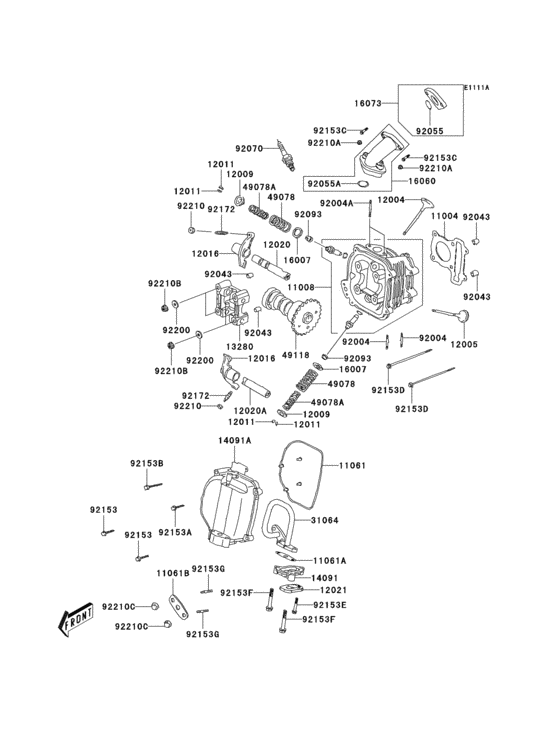

Cylinder head(1/2)(a8f-aaf) Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90A8F
- Engine Capacity
- 89
- Year
- 2008
- Sales region
- Australia
- Colour
- Lime Green (930)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11004
|
11004
11004-Y002 GASKET-HEAD |
11004-Y002 |
US $15.13 |
||
|
11008
|
11008
11008-Y004 HEAD-COMP-CYLINDER |
11008-Y004 |
US $397.19 |
||
|
11061
|
11061
11061-Y010 GASKET,CYLINDER HEAD |
11061-Y010 |
US $10.18 |
||
|
11061A
|
11061A
11061-Y018 GASKET |
11061-Y018 |
US $2.13 |
||
|
11061B
|
11061B
11061-Y020 GASKET |
11061-Y020 |
US $6.99 |
||
|
12004
|
12004
12004-Y002 VALVE-INTAKE |
12004-Y002 |
US $31.09 |
||
|
12005
|
12005
12005-Y002 VALVE-EXHAUST |
12005-Y002 |
US $51.10 |
||
|
12009
|
12009
12009-Y001 Retainer-valve spring |
12009-Y001 |
from US $2.33 |
||
|
12011
|
12011
12011-Y001 COLLET |
12011-Y001 |
from US $4.51 |
||
|
12016
|
12016
12016-Y001 ARM-ROCKER |
12016-Y001 |
US $64.36 |
||
|
12020
|
12020
12020-Y001 SHAFT-ROCKER,IN |
12020-Y001 |
US $13.80 |
||
|
12020A
|
12020A
12020-Y003 SHAFT-ROCKER,EX |
12020-Y003 |
US $8.81 |
||
|
12021
|
12021
12021-Y002 VALVE-ASSY-REED |
12021-Y002 |
US $27.12 |
||
|
13280
|
13280
13280-Y002 HOLDER,CAMSHAFT |
13280-Y002 |
US $33.95 |
||
|
14091
|
14091
14091-Y015 COVER,REED VALVE |
14091-Y015 |
US $7.62 |
||
|
14091A
|
14091A
14091-Y016 Cover,cylinder head |
14091-Y016 |
US $33.63 |
||
|
16007
|
16007
16007-Y001 SEAT-SPRING |
16007-Y001 |
US $2.81 |
||
|
16060
|
16060
16060-Y004 PIPE-INTAKE |
16060-Y004 |
US $54.88 |
||
|
16073
|
16073
16073-Y002 INSULATOR |
16073-Y002 |
US $38.64 |
||
|
31064
|
31064
31064-Y003 PIPE-COMP |
31064-Y003 |
US $24.96 |
||
|
49078
|
49078
49078-Y002 SPRING-ENGINE VALVE,O |
49078-Y002 |
US $8.79 |
||
|
49078A
|
49078A
49078-Y003 SPRING-ENGINE VALVE,I |
49078-Y003 |
US $6.94 |
||
|
49118
|
49118
49118-Y002 CAMSHAFT-COMP |
49118-Y002 |
US $141.56 |
||
|
92004
|
92004
92004-Y006 STUD,8X32 |
92004-Y006 |
US $1.94 |
||
|
92004A
|
92004A
92004-Y007 STUD,6X50 |
92004-Y007 |
US $3.91 |
||
|
92043
|
92043
92043-Y013 PIN,10X16 |
92043-Y013 |
from US $0.62 |
||
|
92055
|
92055
92055-Y007 ORING,23X2.4 ATV0801 |
92055-Y007 |
US $1.43 |
||
|
92055A
|
92055A
92055-Y008 RING-O,22X2.0 |
92055-Y008 |
US $1.43 |
||
|
92070
|
92070
92070-Y002 KA SPARK PLUG CR7HSA |
92070-Y002 |
US $31.10 |
||
|
92093
|
92093
92093-Y001 SEAL |
92093-Y001 |
US $5.74 |
||
| replacement | |||||
|
92093
|
92093
92093-Y025 SEAL |
92093-Y025 |
from US $4.20 |
||
|
92153
|
92153
92153-Y027 BOLT,FLANGE,6X25 |
92153-Y027 |
US $1.17 |
||
|
92153A
|
92153A
92153-Y029 BOLT,FLANGE,6X35 |
92153-Y029 |
US $1.21 |
||
|
92153B
|
92153B
92153-Y030 BOLT,FLANGE,6X50 |
92153-Y030 |
US $1.21 |
||
|
92153C
|
92153C
92153-Y051 BOLT,FLANGE,6X25 |
92153-Y051 |
US $1.56 |
||
|
92153D
|
92153D
92153-Y056 BOLT,FLANGE,6X95 |
92153-Y056 |
US $0.99 |
||
| replacement | |||||
|
92153D
|
92153D
92154-Y143 BOLT,FLANGE,6X95 |
92154-Y143 |
from US $3.11 |
||
|
92153E
|
92153E
92153-Y065 BOLT,FLANGE,6X25 |
92153-Y065 |
US $1.14 |
||
|
92153F
|
92153F
92153-Y066 BOLT,FLANGE,6X40 |
92153-Y066 |
US $1.17 |
||
|
92153G
|
92153G
92153-Y068 BOLT,STUD,6X16 |
92153-Y068 |
US $1.01 |
||
| replacement | |||||
|
92153G
|
92153G
92004-Y011 STUD,6X28 |
92004-Y011 |
from US $0.78 |
||
|
92172
|
92172
92172-Y003 SCREW |
92172-Y003 |
from US $2.33 |
||
|
92200
|
92200
92200-Y009 WASHER,8MM |
92200-Y009 |
US $1.94 |
||
|
92210
|
92210
92210-Y004 NUT |
92210-Y004 |
from US $0.78 |
||
|
92210A
|
92210A
92210-Y027 NUT,6MM |
92210-Y027 |
from US $0.46 |
||
|
92210B
|
92210B
92210-Y028 NUT,8MM |
92210-Y028 |
US $1.17 |
||
|
92210C
|
92210C
92210-Y035 NUT,6MM |
92210-Y035 |
US $3.15 |
||
