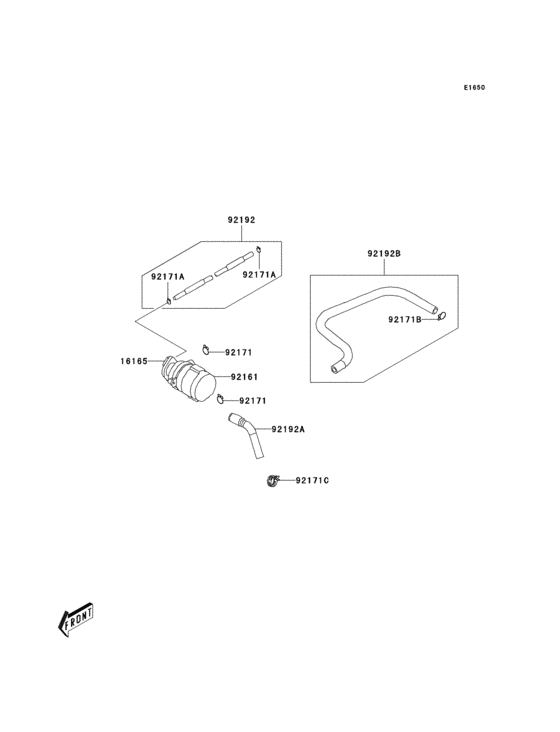

Fuel evaporative system(a8f-aaf) Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90A8F
- Engine Capacity
- 89
- Year
- 2008
- Sales region
- Australia
- Colour
- Lime Green (930)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16165
|
16165
16165-Y002 SEPARATOR |
16165-Y002 |
US $48.43 |
||
|
92161
|
92161
92161-Y008 DAMPER |
92161-Y008 |
US $3.47 |
||
|
92171
|
92171
92171-Y016 CLAMP |
92171-Y016 |
US $2.13 |
||
|
92171A
|
92171A
92171-Y017 CLAMP |
92171-Y017 |
from US $0.46 |
||
|
92171B
|
92171B
92171-Y020 CLAMP |
92171-Y020 |
US $3.86 |
||
|
92171C
|
92171C
92171-Y022 CLAMP |
92171-Y022 |
US $3.86 |
||
|
92192
|
92192
92192-Y007 TUBE,VACUUM |
92192-Y007 |
US $4.49 |
||
|
92192A
|
92192A
92192-Y009 TUBE,AICV-REED VALVE |
92192-Y009 |
US $10.27 |
||
|
92192B
|
92192B
92192-Y010 TUBE,AIR-AICV |
92192-Y010 |
US $11.75 |
