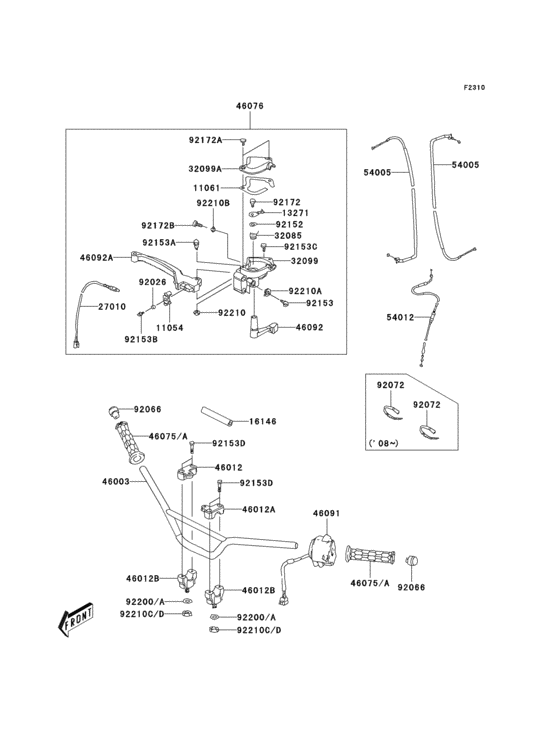

Handlebar Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90A8F
- Engine Capacity
- 89
- Year
- 2008
- Sales region
- Australia
- Colour
- Lime Green (930)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11054
|
11054
11054-Y001 BRACKET |
11054-Y001 |
US $10.95 |
||
|
11061
|
11061
11061-Y017 GASKET |
11061-Y017 |
US $4.49 |
||
|
13271
|
13271
13271-Y008 PLATE |
13271-Y008 |
US $5.17 |
||
| replacement | |||||
|
13271
|
13271
13272-Y043 Plate |
13272-Y043 |
US $6.26 |
||
|
16146
|
16146
16146-Y001 COVER-ASSY,HANDLE |
16146-Y001 |
US $15.25 |
||
|
27010
|
27010
27010-Y003 SWITCH,STOP |
27010-Y003 |
US $14.01 |
||
|
32085
|
32085
32085-Y001 STOPPER |
32085-Y001 |
US $5.17 |
||
| replacement | |||||
|
32085
|
32085
32085-Y006 Stopper |
32085-Y006 |
US $8.08 |
||
|
32099
|
32099
32099-Y002 CASE,LWR |
32099-Y002 |
US $19.30 |
||
|
32099A
|
32099A
32099-Y003 CASE,UPP |
32099-Y003 |
US $13.19 |
||
|
46003
|
46003
46003-Y001 HANDLE |
46003-Y001 |
US $49.25 |
||
|
46012
|
46012
46012-Y001 HOLDER-HANDLE,UPP,RH |
46012-Y001 |
US $9.21 |
||
|
46012A
|
46012A
46012-Y002 HOLDER-HANDLE,UPP,LH |
46012-Y002 |
US $9.21 |
||
|
46012B
|
46012B
46012-Y003 HOLDER-HANDLE,LWR |
46012-Y003 |
US $13.82 |
||
|
46075
|
46075
46075-Y001 GRIP,HANDLE |
46075-Y001 |
US $8.15 |
||
| replacement | |||||
|
46075
|
46075
46075-Y002 GRIP,HANDLE |
46075-Y002 |
US $9.62 |
||
|
46076
|
46076
46076-Y001 LEVER-ASSY-GRIP,RH |
46076-Y001 |
US $78.32 |
||
|
46091
|
46091
46091-Y001 HOUSING-ASSY-CONTROL, |
46091-Y001 |
US $98.26 |
||
|
46092
|
46092
46092-Y001 LEVER-GRIP,CHOKE |
46092-Y001 |
US $17.68 |
||
|
46092A
|
46092A
46092-Y002 LEVER-GRIP,RH |
46092-Y002 |
US $17.87 |
||
|
54005
|
54005
54005-Y001 CABLE-BRAKE,FR |
54005-Y001 |
US $17.87 |
||
|
54012
|
54012
54012-Y001 CABLE-THROTTLE |
54012-Y001 |
US $11.29 |
||
|
92026
|
92026
92026-Y007 SPACER |
92026-Y007 |
US $5.47 |
||
| replacement | |||||
|
92026
|
92026
92026-Y013 Spacer |
92026-Y013 |
US $8.53 |
||
|
92066
|
92066
92066-Y002 PLUG |
92066-Y002 |
US $1.58 |
||
|
92072
|
92072
92072-Y001 BAND |
92072-Y001 |
US $2.45 |
||
|
92152
|
92152
92152-Y012 COLLAR |
92152-Y012 |
US $5.17 |
||
| replacement | |||||
|
92152
|
92152
92152-Y078 Collar |
92152-Y078 |
US $7.19 |
||
|
92153
|
92153
92153-Y002 BOLT |
92153-Y002 |
US $5.18 |
||
| replacement | |||||
|
92153
|
92153
92154-Y230 Bolt |
92154-Y230 |
US $7.19 |
||
|
92153A
|
92153A
92153-Y009 BOLT,6X22 |
92153-Y009 |
US $1.31 |
||
| replacement | |||||
|
92153A
|
92153A
92154-Y231 Bolt |
92154-Y231 |
US $2.43 |
||
|
92153B
|
92153B
92153-Y025 BOLT,FLANGE,6X16 |
92153-Y025 |
US $1.14 |
||
|
92153C
|
92153C
92153-Y060 BOLT,SOCKET,6X20 |
92153-Y060 |
US $2.13 |
||
|
92153D
|
92153D
92153-Y061 BOLT,SOCKET,6X25 |
92153-Y061 |
US $3.49 |
||
| replacement | |||||
|
92153D
|
92153D
92154-Y146 BOLT,SOCKET,6X25 |
92154-Y146 |
from US $3.11 |
||
|
92172
|
92172
92172-Y005 SCREW,PAN,3X8 |
92172-Y005 |
US $0.58 |
||
| replacement | |||||
|
92172
|
92172
92172-Y090 Screw,Pan,3X8 |
92172-Y090 |
US $2.87 |
||
|
92172A
|
92172A
92172-Y008 SCREW,PAN,4X16 |
92172-Y008 |
US $0.85 |
||
| replacement | |||||
|
92172A
|
92172A
92172-Y091 Screw,Pan,4X16 |
92172-Y091 |
US $2.87 |
||
|
92172B
|
92172B
92172-Y009 SCREW,PAN,5X14 |
92172-Y009 |
US $1.38 |
||
|
92200A
|
92200A
92200-Y020 WASHER,10MM |
92200-Y020 |
US $1.14 |
||
|
92210
|
92210
92210-Y008 NUT,6MM |
92210-Y008 |
US $1.31 |
||
| replacement | |||||
|
92210
|
92210
92210-Y100 Nut,6Mm |
92210-Y100 |
US $2.87 |
||
|
92210A
|
92210A
92210-Y015 NUT |
92210-Y015 |
US $2.32 |
||
| replacement | |||||
|
92210A
|
92210A
92210-Y101 Nut |
92210-Y101 |
US $2.87 |
||
|
92210B
|
92210B
92210-Y017 NUT,5MM |
92210-Y017 |
US $1.21 |
||
|
92210D
|
92210D
92210-Y034 NUT,10MM |
92210-Y034 |
from US $1.71 |
||
