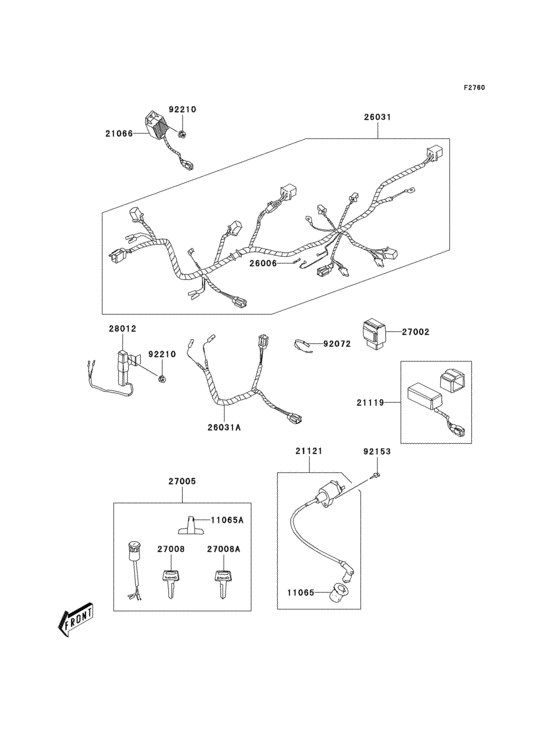

Chassis electrical equipment Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90A8F
- Engine Capacity
- 89
- Year
- 2008
- Sales region
- Canada
- Colour
- Lime Green (930)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-Y001 CAP |
11065-Y001 |
US $11.76 |
||
|
11065A
|
11065A
11065-Y007 CAP,KEY |
11065-Y007 |
US $5.54 |
||
|
21066
|
21066
21066-Y001 REGULATOR-VOLTAGE |
21066-Y001 |
US $56.80 |
||
|
21119
|
21119
21119-Y002 IGNITER |
21119-Y002 |
US $197.05 |
||
| replacement | |||||
|
21119
|
21119
21119-Y003 IGNITER |
21119-Y003 |
US $225.42 |
||
|
21121
|
21121
21121-Y001 COIL-IGNITION |
21121-Y001 |
US $39.76 |
||
|
26006
|
26006
26006-Y001 FUSE,7A |
26006-Y001 |
US $5.56 |
||
|
26031
|
26031
26031-Y002 HARNESS,MAIN |
26031-Y002 |
US $129.42 |
||
|
26031A
|
26031A
26031-Y003 HARNESS,SUB |
26031-Y003 |
US $3.71 |
||
| replacement | |||||
|
26031A
|
26031A
26031-Y004 HARNESS,SUB |
26031-Y004 |
US $6.02 |
||
|
27002
|
27002
27002-Y002 RELAY-ASSY |
27002-Y002 |
US $43.57 |
||
|
27005
|
27005
27005-Y001 SWITCH-ASSY-IGNITION |
27005-Y001 |
US $53.89 |
||
| replacement | |||||
|
27005
|
27005
27005-Y002 SWITCH-ASSY-IGNITION |
27005-Y002 |
US $54.72 |
||
|
27008
|
27008
27008-Y001 KEY-LOCK,BLANK |
27008-Y001 |
US $7.82 |
||
|
27008A
|
27008A
27008-Y002 KEY-LOCK,BLANK |
27008-Y002 |
US $7.82 |
||
|
28012
|
28012
28012-Y001 RESISTOR |
28012-Y001 |
US $28.75 |
||
|
92072
|
92072
92072-Y003 BAND,TIE ATV0801 |
92072-Y003 |
from US $0.94 |
||
|
92153
|
92153
92153-Y006 BOLT,FLANGE,5X22 |
92153-Y006 |
US $1.17 |
||
|
92210
|
92210
92210-Y027 NUT,6MM |
92210-Y027 |
from US $0.46 |
||
