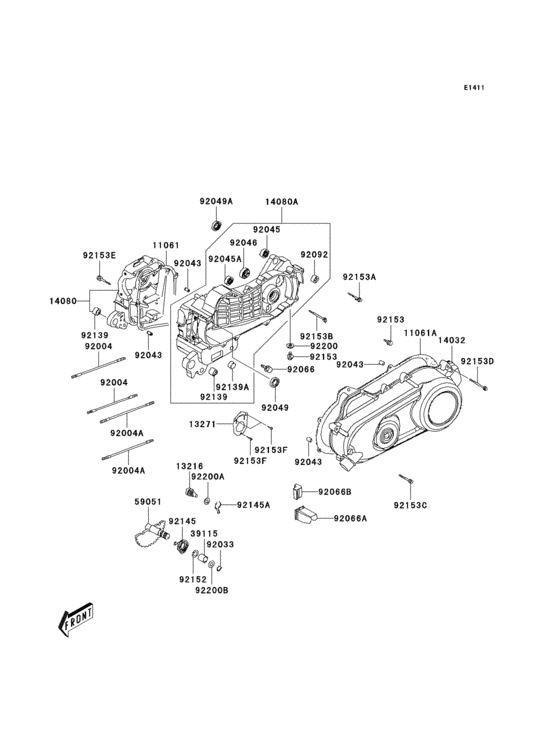

Crankcase Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90A8F
- Engine Capacity
- 89
- Year
- 2008
- Sales region
- Canada
- Colour
- Lime Green (930)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-Y003 GASKET,CRANK CASE |
11061-Y003 |
US $9.06 |
||
|
11061A
|
11061A
11061-Y007 GASKET,CLUTCH COVER |
11061-Y007 |
US $19.26 |
||
|
13216
|
13216
13216-Y002 GEAR-COMP,KICK DRIVEN |
13216-Y002 |
US $40.56 |
||
|
13271
|
13271
13271-Y002 PLATE |
13271-Y002 |
US $5.70 |
||
|
14032
|
14032
14032-Y002-931 COVER-CLUTCH,BLACK |
14032-Y002-931 |
US $95.67 |
||
| replacement | |||||
|
14032
|
14032
14032-Y002-976 Cover-Clutch,f.black |
14032-Y002-976 |
US $115.69 |
||
|
14080
|
14080
14080-Y001 CRANKCASE,RH |
14080-Y001 |
US $173.52 |
||
| replacement | |||||
|
14080
|
14080
14080-Y007 CRANKCASE,RH |
14080-Y007 |
US $194.62 |
||
|
14080A
|
14080A
14080-Y003 CRANKCASE,LH |
14080-Y003 |
US $373.17 |
||
|
39115
|
39115
39115-Y001 SHAFT-IDLER,KICK |
39115-Y001 |
US $3.69 |
||
|
59051
|
59051
59051-Y001 GEAR-SPUR,KICK STARTE |
59051-Y001 |
US $40.56 |
||
|
92004
|
92004
92004-Y002 STUD,8X182.5 |
92004-Y002 |
US $7.51 |
||
|
92004A
|
92004A
92004-Y004 STUD,8X190.5 |
92004-Y004 |
US $7.51 |
||
|
92033
|
92033
92033-Y012 RING-SNAP |
92033-Y012 |
US $1.17 |
||
|
92043
|
92043
92043-Y012 PIN,8X14 |
92043-Y012 |
from US $0.62 |
||
|
92045
|
92045
92045-Y006 BEARING-BALL,6203 |
92045-Y006 |
US $11.56 |
||
|
92045A
|
92045A
92045-Y007 BEARING-BALL,6204 |
92045-Y007 |
US $15.08 |
||
|
92046
|
92046
92046-Y003 BEARING-NEEDLE |
92046-Y003 |
US $12.19 |
||
|
92049
|
92049
92049-Y001 Seal-oil,19.8x30x5 |
92049-Y001 |
US $11.97 |
||
| replacement | |||||
|
92049
|
92049
92049-Y041 SEAL-OIL,19.8X30X5 |
92049-Y041 |
from US $5.44 |
||
|
92049A
|
92049A
92049-Y004 SEAL-OIL,20X32X6 |
92049-Y004 |
US $2.84 |
||
|
92066
|
92066
92066-Y003 PLUG,DRAIN |
92066-Y003 |
US $4.49 |
||
|
92066A
|
92066A
92066-Y005 PLUG |
92066-Y005 |
US $18.04 |
||
|
92066B
|
92066B
92066-Y007 PLUG |
92066-Y007 |
US $3.86 |
||
|
92092
|
92092
92092-Y002 BUSHING-RUBBER |
92092-Y002 |
US $7.26 |
||
|
92139
|
92139
92139-Y001 BUSHING |
92139-Y001 |
US $7.51 |
||
|
92139A
|
92139A
92139-Y002 BUSHING |
92139-Y002 |
US $2.13 |
||
|
92145
|
92145
92145-Y001 SPRING |
92145-Y001 |
US $11.73 |
||
|
92145A
|
92145A
92145-Y011 SPRING,KICK DRIVEN GE |
92145-Y011 |
US $2.45 |
||
|
92152
|
92152
92152-Y006 COLLAR |
92152-Y006 |
US $2.28 |
||
|
92153
|
92153
92153-Y001 BOLT,FLANGE,8X12 |
92153-Y001 |
from US $0.62 |
||
|
92153A
|
92153A
92153-Y036 BOLT,FLANGE,8X45 |
92153-Y036 |
US $1.87 |
||
| replacement | |||||
|
92153A
|
92153A
92154-Y136 BOLT,FLANGE,8X45 |
92154-Y136 |
from US $2.65 |
||
|
92153B
|
92153B
92153-Y038 BOLT,FLANGE,8X60 |
92153-Y038 |
US $3.86 |
||
|
92153C
|
92153C
92153-Y052 BOLT,FLANGE,6X28 |
92153-Y052 |
US $1.67 |
||
| replacement | |||||
|
92153C
|
92153C
92154-Y068 BOLT,FLANGE,6X28 |
92154-Y068 |
from US $1.87 |
||
|
92153D
|
92153D
92153-Y053 BOLT,FLANGE,6X35 |
92153-Y053 |
US $1.67 |
||
| replacement | |||||
|
92153D
|
92153D
92154-Y069 BOLT,FLANGE,6X35 |
92154-Y069 |
from US $1.87 |
||
|
92153E
|
92153E
92153-Y054 BOLT,FLANGE,6X45 |
92153-Y054 |
US $4.03 |
||
| replacement | |||||
|
92153E
|
92153E
92154-Y135 BOLT,FLANGE,6X45 |
92154-Y135 |
from US $5.28 |
||
|
92153F
|
92153F
92153-Y058 BOLT,5X10 |
92153-Y058 |
from US $0.46 |
||
|
92200
|
92200
92200-Y001 WASHER,8MM |
92200-Y001 |
US $1.17 |
||
|
92200A
|
92200A
92200-Y002 WASHER,10MM |
92200-Y002 |
US $2.45 |
||
|
92200B
|
92200B
92200-Y008 WASHER |
92200-Y008 |
US $1.75 |
||
