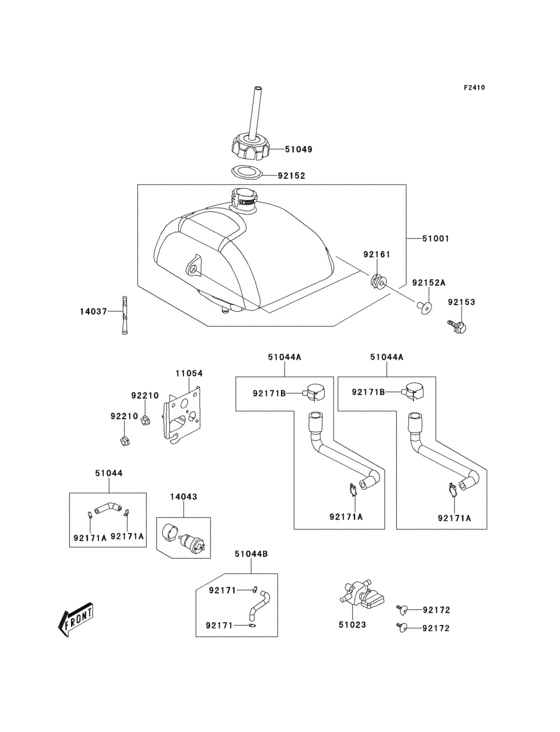

Fuel tank Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90ACF
- Engine Capacity
- 89
- Year
- 2012
- Sales region
- Canada
- Colour
- Lime Green (930)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11054
|
11054
11054-Y003 BRACKET |
11054-Y003 |
US $9.44 |
||
|
14037
|
14037
14037-Y001 SCREEN |
14037-Y001 |
US $5.22 |
||
|
14043
|
14043
14043-Y002 FILTER,FUEL |
14043-Y002 |
US $12.22 |
||
|
51001
|
51001
51001-Y005 TANK-COMP-FUEL |
51001-Y005 |
US $274.21 |
||
|
51023
|
51023
51023-Y001 TAP-ASSY |
51023-Y001 |
US $23.18 |
||
| replacements | |||||
|
51023
|
51023
51023-Y003 TAP-ASSY |
51023-Y003 |
US $25.51 |
||
|
51023
|
51023
51023-Y006 Tap-Assy |
51023-Y006 |
US $28.88 |
||
|
51044
|
51044
51044-Y005 Tube-assy,fuel |
51044-Y005 |
US $6.82 |
||
| replacement | |||||
|
51044
|
51044
51044-Y018 TUBE-ASSY,FUEL |
51044-Y018 |
US $10.05 |
||
|
51044A
|
51044A
51044-Y007 TUBE-ASSY,FUEL TANK |
51044-Y007 |
US $4.75 |
||
| replacement | |||||
|
51044A
|
51044A
51044-Y001 TUBE-ASSY,FUEL TANK |
51044-Y001 |
US $4.49 |
||
|
51044B
|
51044B
51044-Y008 TUBE-ASSY,FUEL |
51044-Y008 |
US $10.42 |
||
|
51049
|
51049
51049-Y002 CAP-TANK |
51049-Y002 |
US $25.38 |
||
|
92152
|
92152
92152-Y001 COLLAR |
92152-Y001 |
US $2.45 |
||
|
92152A
|
92152A
92152-Y013 COLLAR |
92152-Y013 |
US $1.51 |
||
|
92153
|
92153
92153-Y049 BOLT,FLANGE,6X20 |
92153-Y049 |
US $1.24 |
||
|
92161
|
92161
92161-Y001 DAMPER |
92161-Y001 |
US $4.23 |
||
|
92171
|
92171
92171-Y010 CLAMP |
92171-Y010 |
from US $0.46 |
||
|
92171A
|
92171A
92171-Y011 CLAMP |
92171-Y011 |
from US $0.46 |
||
|
92171B
|
92171B
92171-Y021 CLAMP |
92171-Y021 |
US $1.94 |
||
|
92172
|
92172
92172-Y010 SCREW,5X16 |
92172-Y010 |
US $1.21 |
||
|
92210
|
92210
92210-Y027 NUT,6MM |
92210-Y027 |
from US $0.46 |
||
