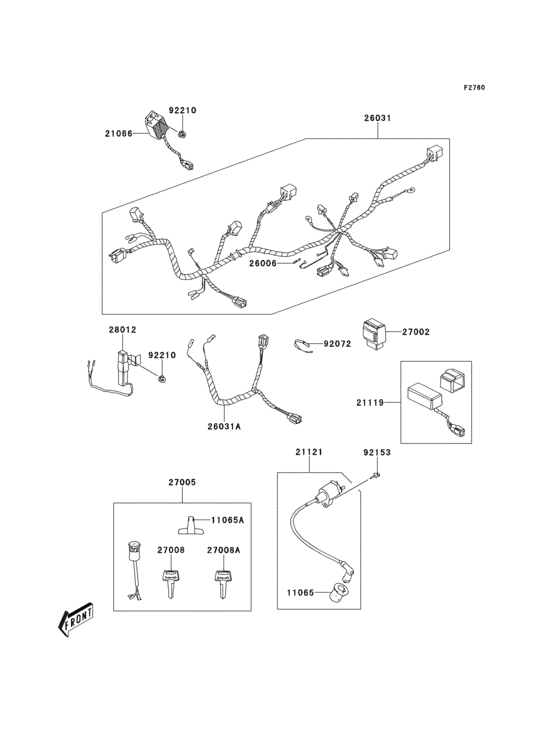

Chassis electrical equipment Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AEF
- Engine Capacity
- 89
- Year
- 2014
- Sales region
- USA
- Frame
- RGSWE07A EB200101 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065A
|
11065A
11065-Y007 CAP,KEY |
11065-Y007 |
US $5.54 |
||
|
21121
|
21121
21121-Y001 COIL-IGNITION |
21121-Y001 |
US $39.76 |
||
|
26031A
|
26031A
26031-Y003 HARNESS,SUB |
26031-Y003 |
US $3.71 |
||
| replacement | |||||
|
26031A
|
26031A
26031-Y004 HARNESS,SUB |
26031-Y004 |
US $6.02 |
||
|
92072
|
92072
92072-Y003 BAND,TIE ATV0801 |
92072-Y003 |
from US $0.94 |
||
|
92210
|
92210
92210-Y027 NUT,6MM |
92210-Y027 |
from US $0.46 |
||
