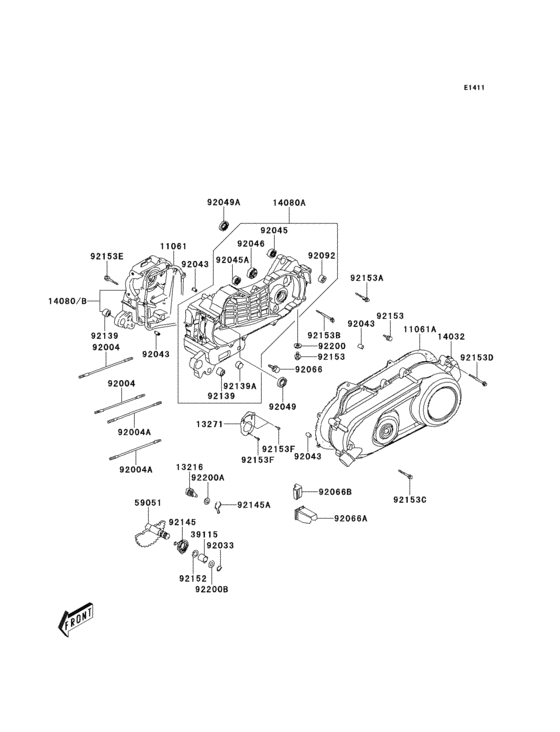

Crankcase Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AEF
- Engine Capacity
- 89
- Year
- 2014
- Sales region
- USA
- Frame
- RGSWE07A EB200101 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
92043
|
92043
92043-Y012 PIN,8X14 |
92043-Y012 |
from US $0.62 |
||
|
92066
|
92066
92066-Y003 PLUG,DRAIN |
92066-Y003 |
US $4.49 |
||
|
92153
|
92153
92153-Y001 BOLT,FLANGE,8X12 |
92153-Y001 |
from US $0.62 |
||
|
92153A
|
92153A
92153-Y036 BOLT,FLANGE,8X45 |
92153-Y036 |
US $1.87 |
||
| replacement | |||||
|
92153A
|
92153A
92154-Y136 BOLT,FLANGE,8X45 |
92154-Y136 |
from US $2.65 |
||
|
92153C
|
92153C
92153-Y052 BOLT,FLANGE,6X28 |
92153-Y052 |
US $1.67 |
||
| replacement | |||||
|
92153C
|
92153C
92154-Y068 BOLT,FLANGE,6X28 |
92154-Y068 |
from US $1.87 |
||
|
92153E
|
92153E
92153-Y054 BOLT,FLANGE,6X45 |
92153-Y054 |
US $4.03 |
||
| replacement | |||||
|
92153E
|
92153E
92154-Y135 BOLT,FLANGE,6X45 |
92154-Y135 |
from US $5.28 |
||
|
92153F
|
92153F
92153-Y058 BOLT,5X10 |
92153-Y058 |
from US $0.46 |
||
