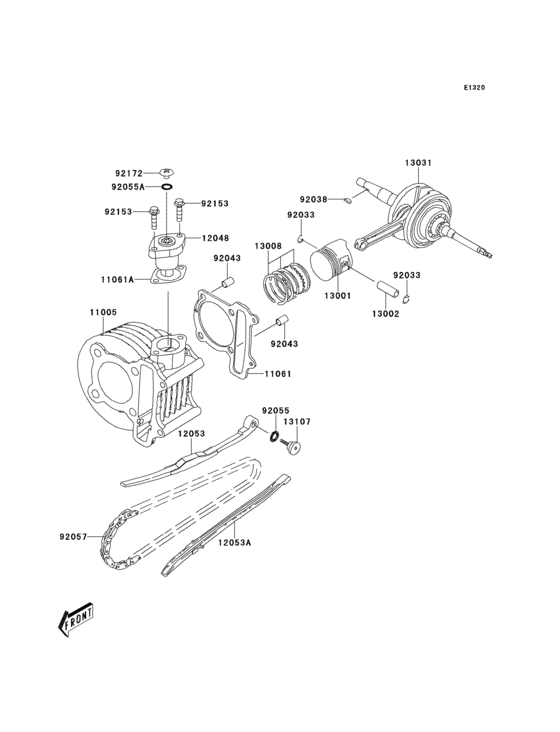

Crankshaft/piston(s) Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AEF
- Engine Capacity
- 89
- Year
- 2014
- Sales region
- USA
- Frame
- RGSWE07A EB200101 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061A
|
11061A
11061-Y012 GASKET |
11061-Y012 |
from US $1.24 |
||
| replacement | |||||
|
11061A
|
11061A
11061-Y070 Gasket,Tensioner Lift |
11061-Y070 |
US $3.47 |
||
|
12048
|
12048
12048-Y001
TENSIONER-ASSY
|
12048-Y001 |
— | ||
| replacement | |||||
|
12048
|
12048
12048-Y005 TENSIONER-ASSY |
12048-Y005 |
from US $37.17 |
||
|
92043
|
92043
92043-Y013 PIN,10X16 |
92043-Y013 |
from US $0.62 |
||
|
92055A
|
92055A
92055-Y010 RING-O,1.5X9.5 |
92055-Y010 |
US $1.43 |
||
|
92153
|
92153
92153-Y003 BOLT,FLANGE,6X22 |
92153-Y003 |
from US $0.46 |
||
