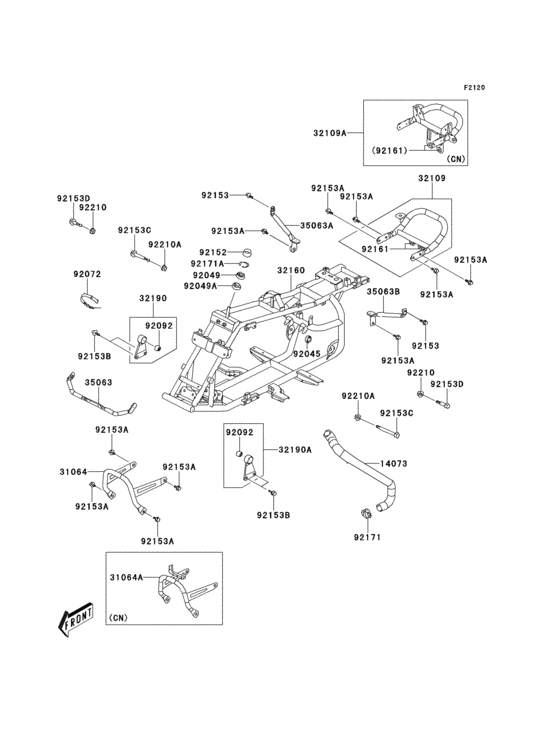

Frame Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AEF
- Engine Capacity
- 89
- Year
- 2014
- Sales region
- USA
- Frame
- RGSWE07A EB200101 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
92049A
|
92049A
92049-Y005 SEAL-OIL,22X35X7 |
92049-Y005 |
US $3.15 |
||
|
92072
|
92072
92072-Y003 BAND,TIE ATV0801 |
92072-Y003 |
from US $0.94 |
||
|
92153
|
92153
92153-Y023 BOLT,FLANGE,6X12 |
92153-Y023 |
from US $0.46 |
||
|
92153A
|
92153A
92153-Y031 BOLT,FLANGE,6X12 |
92153-Y031 |
US $2.45 |
||
|
92153B
|
92153B
92153-Y032 BOLT,FLANGE,8X16 |
92153-Y032 |
US $1.94 |
||
|
92153D
|
92153D
92153-Y069 BOLT,FLANGE,8X40 |
92153-Y069 |
US $3.15 |
||
|
92161
|
92161
92161-Y006 DAMPER |
92161-Y006 |
US $1.87 |
||
|
92210A
|
92210A
92210-Y034 NUT,10MM |
92210-Y034 |
from US $1.71 |
